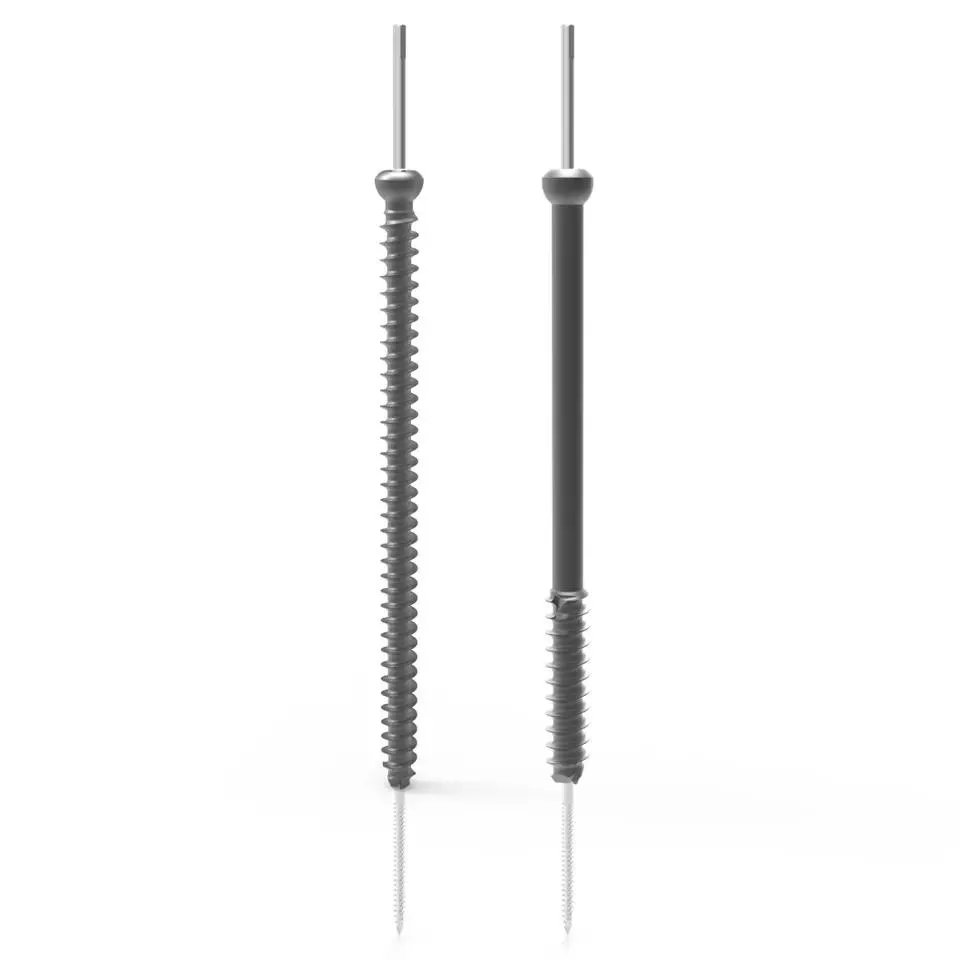

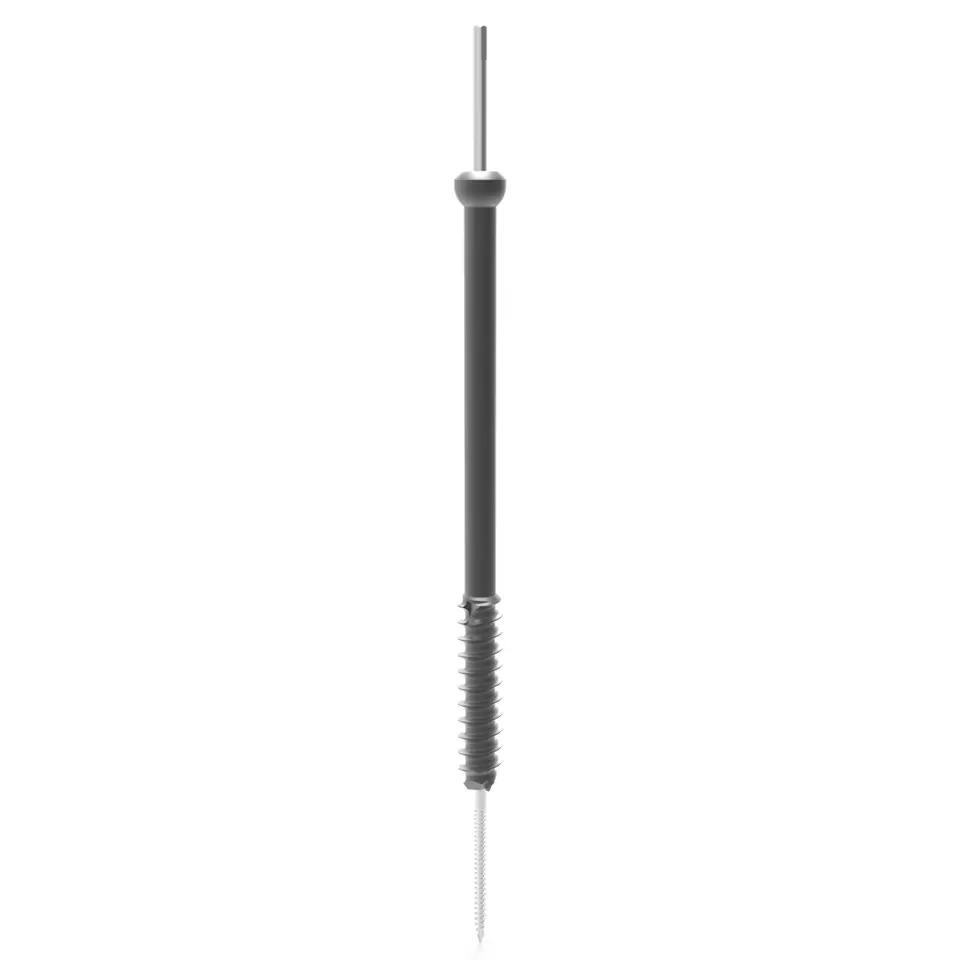

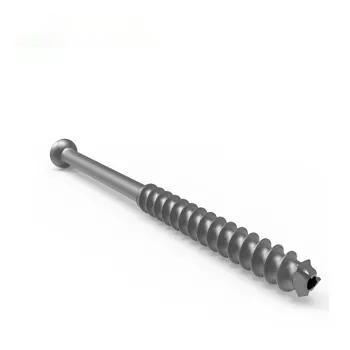

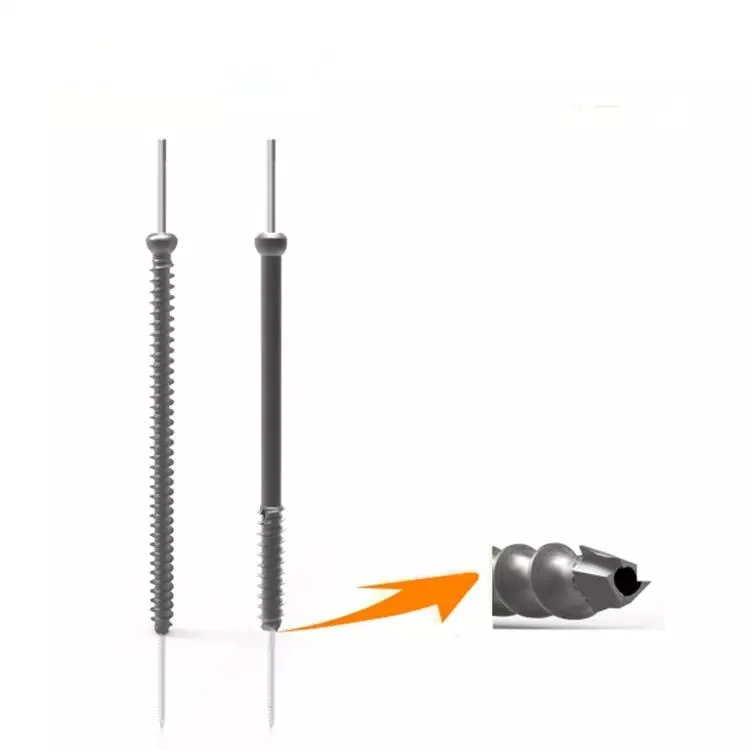

Cannulated Compression Screw Features:
Compared with the conventional screw thread, Double head screw thread is deeper, the spiral angle is bigger.
The proximal thread pitch is 30% smaller than the distal thread and can make effectively pressure to the fracture. Deeper and more sharp tooth design, easy to penetrate cortical bone, improve the gripping force.
Torx head can be better controlled and prevent skidding.

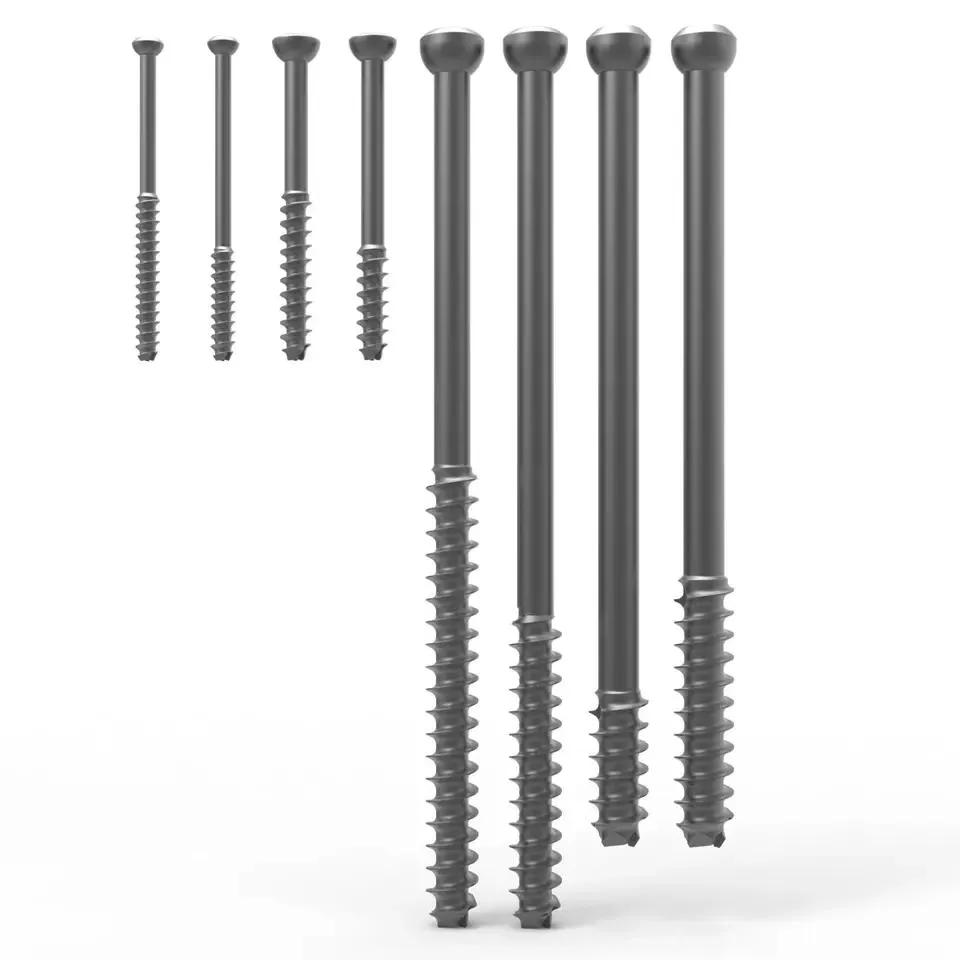

| Types | Diameter | Length |
|---|---|---|
| 3.0 1/3 Thread 1/2 Thread |
Stem 2mm Thread Bottom 3mm Diameter 2mm |
14-40mm(2mm intervals) |
| 4.0 1/3 Thread 1/2 Thread |
Stem 2.9mm Thread Bottom 4mm Diameter 2.4mm |
14-60mm(2mm intervals) 10-60mm(2mm intervals) |
| 6.5 1/2 Thread 1/3 Thread Full Thread |
Stem 4.5mm Thread Bottom 6.5mm Diameter 4mm |
45-100(5mm intervals) |
| 7.3 short Thread long Thread |
Stem 5mm Thread Bottom 7.3mm Diameter 4.8mm |
50-120mm(5mm intervals) thread length 18mm thread length 32mm |
