Product Description

🔹 Basic Information

Model NO. SGM-IIK

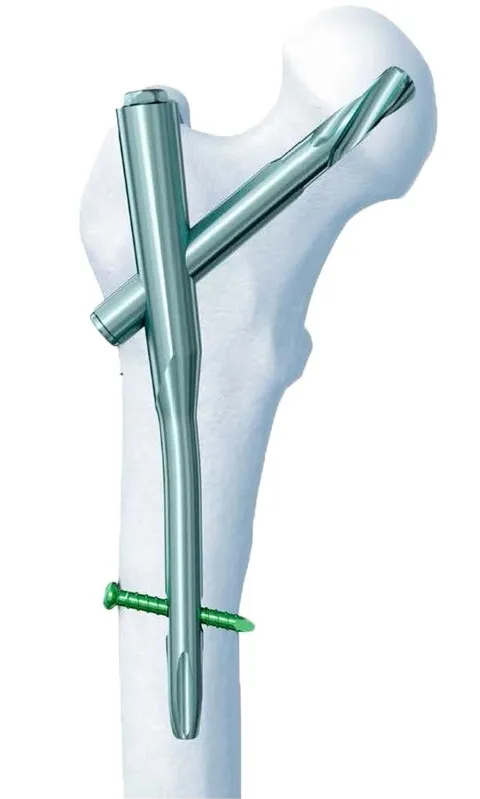

Product Name Proximal Femoral Nail System

Material Titanium Alloy

Application Orthopedic Surgery

Indications Proximal Femoral Fracture

Delivery 3-5 Working Days

Shipping DHL / UPS / FedEx

OEM/ODM Available

🔹 Product Description

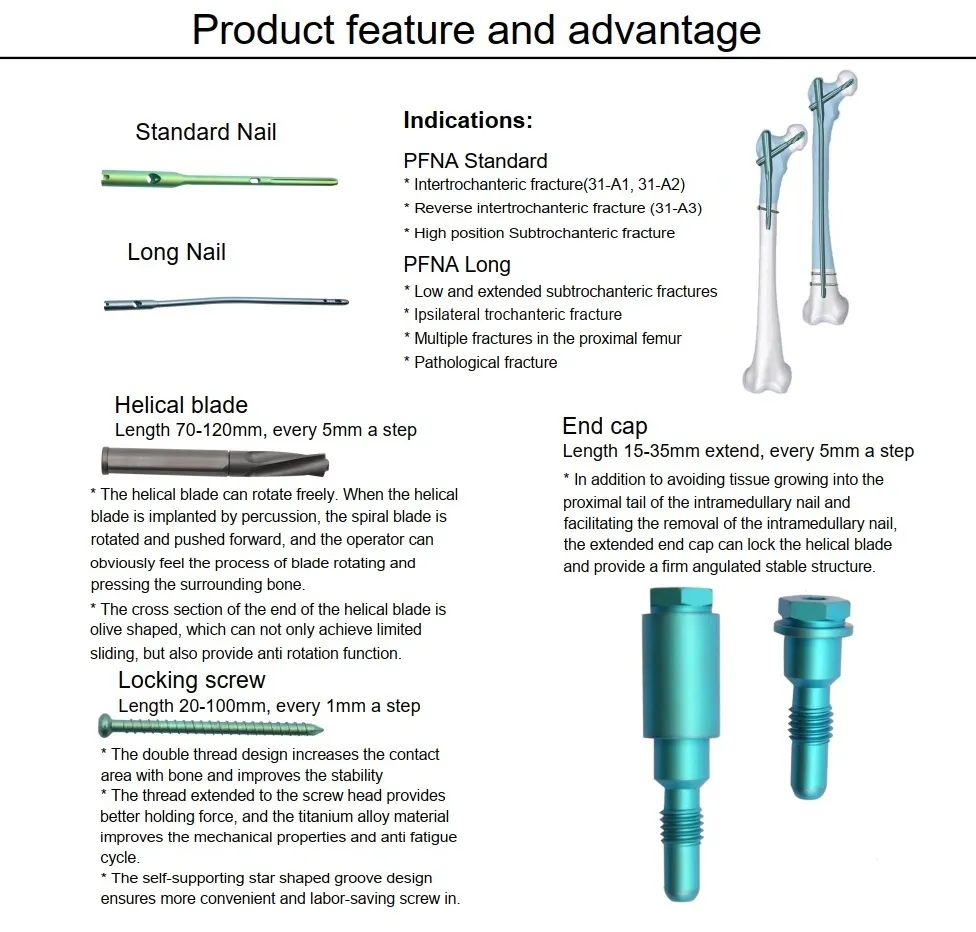

Product Features

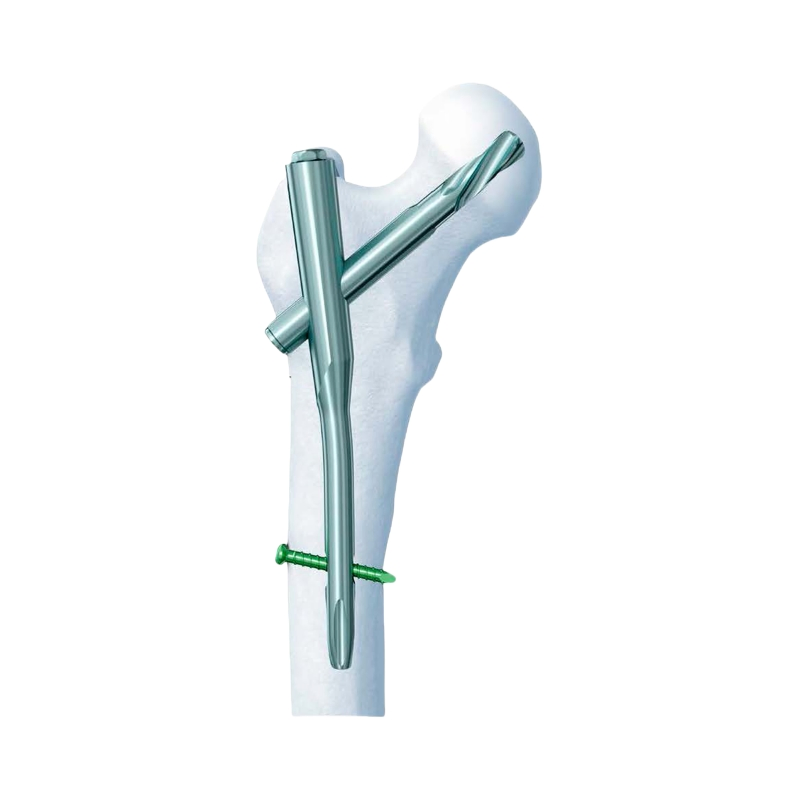

Medial-lateral angle of 5°, allowed to be placed from the top of the greater trochanter.
The flattened proximal lateral design makes it easier for nail insertion.
Optimal stress distribution for better recovery.
The elastic tip and groove design make it easier to insert the nail and avoid stress concentration at the far end.

Indications

PFNA Standard: Intertrochanteric fracture(31-A1, 31-A2), Reverse intertrochanteric fracture (31-A3), High position Subtrochanteric fracture.

PFNA Long: Low and extended subtrochanteric fractures, Ipsilateral trochanteric fracture, Multiple fractures in the proximal femur, Pathological fracture.

🔹 Specifications

Product Name	Specification

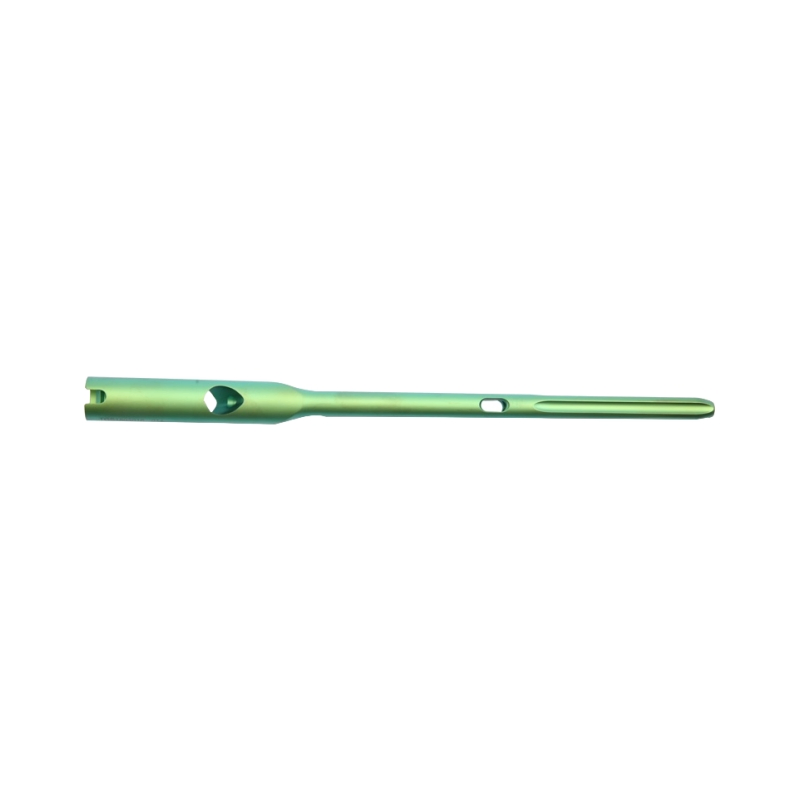

Proximal Femoral Nail	Diameter: 9.0/10.0/11.0/12.0mm; Angle: 130°; Length: 170-240mm

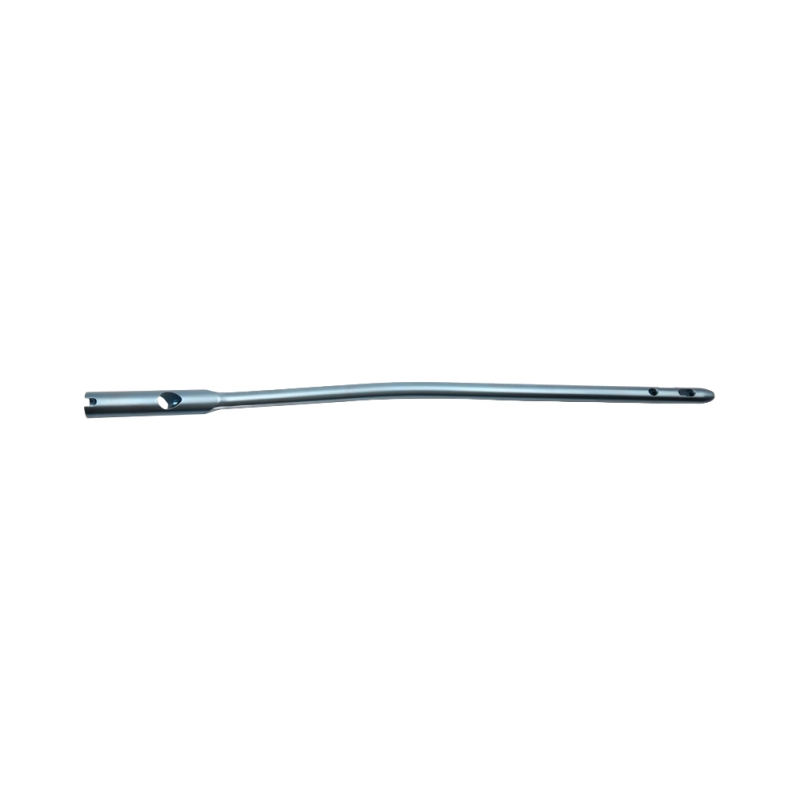

Proximal Femoral Nail, Long	Diameter: 9.0/10.0/11.0mm; Angle: 130°; Left/Right; Length: 320-420mm

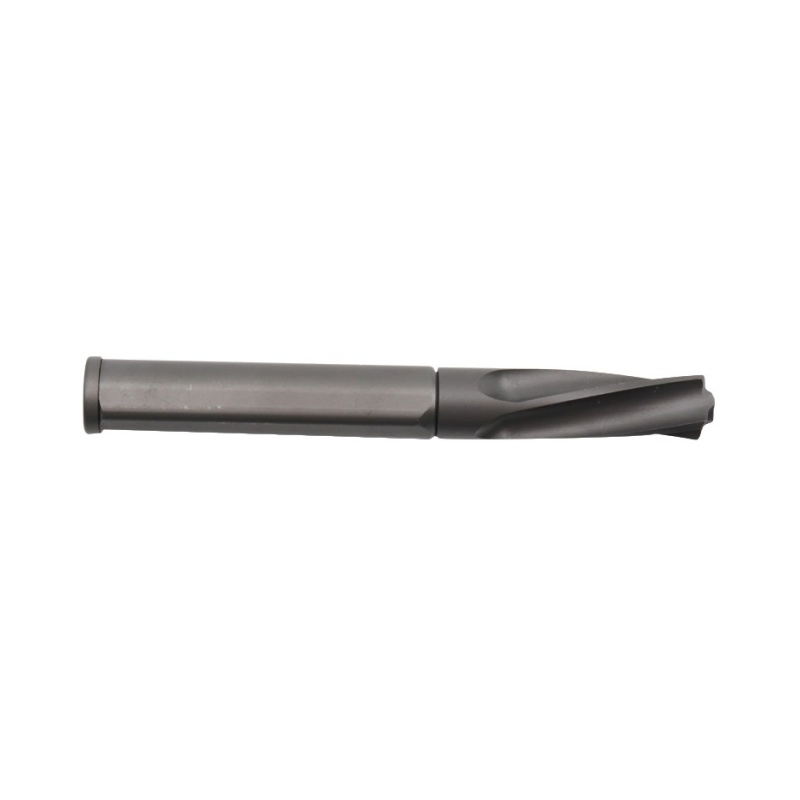

Helical Blade	Diameter: 10.5mm; Length: 70-120mm

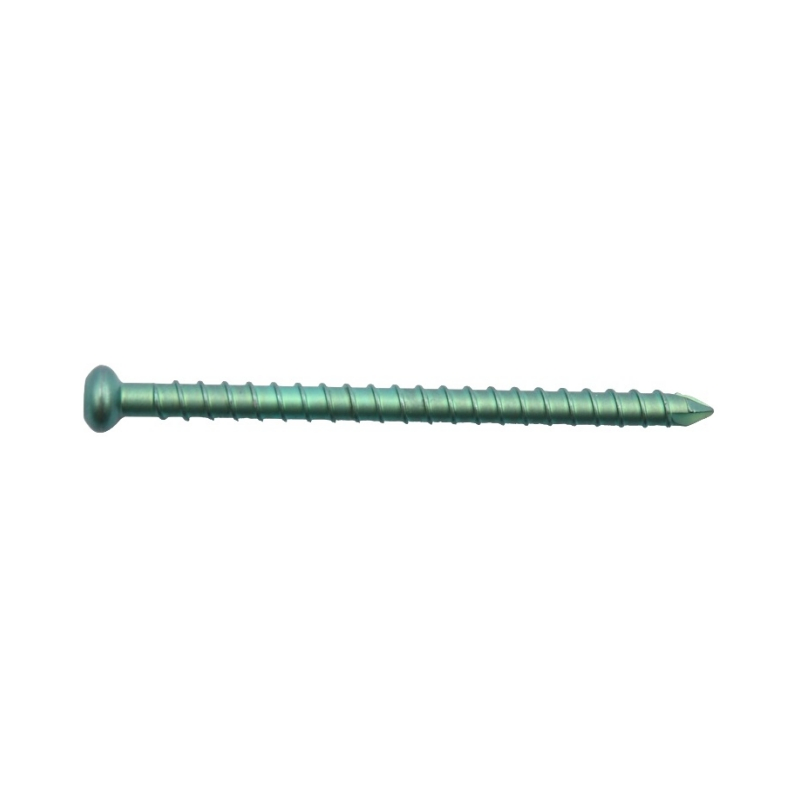

Locking Bolt	Diameter: 4.9mm; Length: 30-72mm
End Cap	Diameter: 10mm; Length: 15-35mm

📦 Packing & Delivery

Packing Details:

Implants: Inner plastic bag + outer carton box.
Instruments Set: Inner instruments box + outer carton box.
Customized packing design service available.

Delivery Way:

By air, DHL, UPS, FedEx, etc.
Efficient processing within 3-5 working days for stock items.

🏭 Production Capacity & Quality

Focus: One-stop orthopedic product solution provider since 2016.

Capacity: 10,000 units/month.

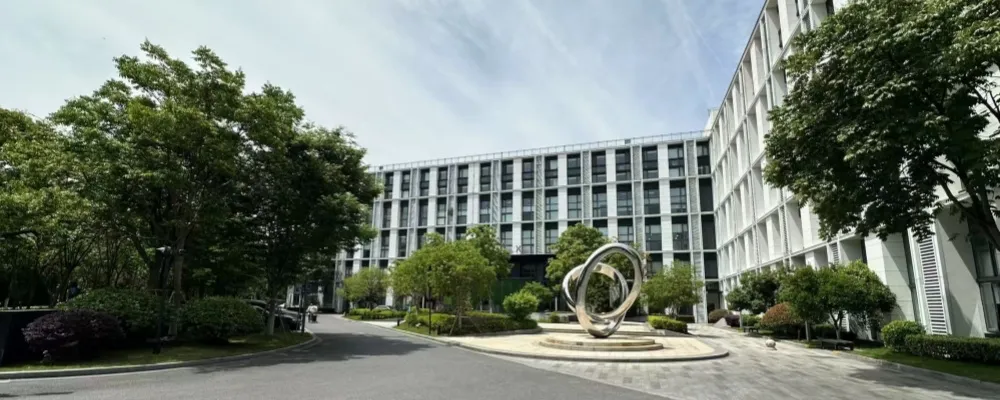

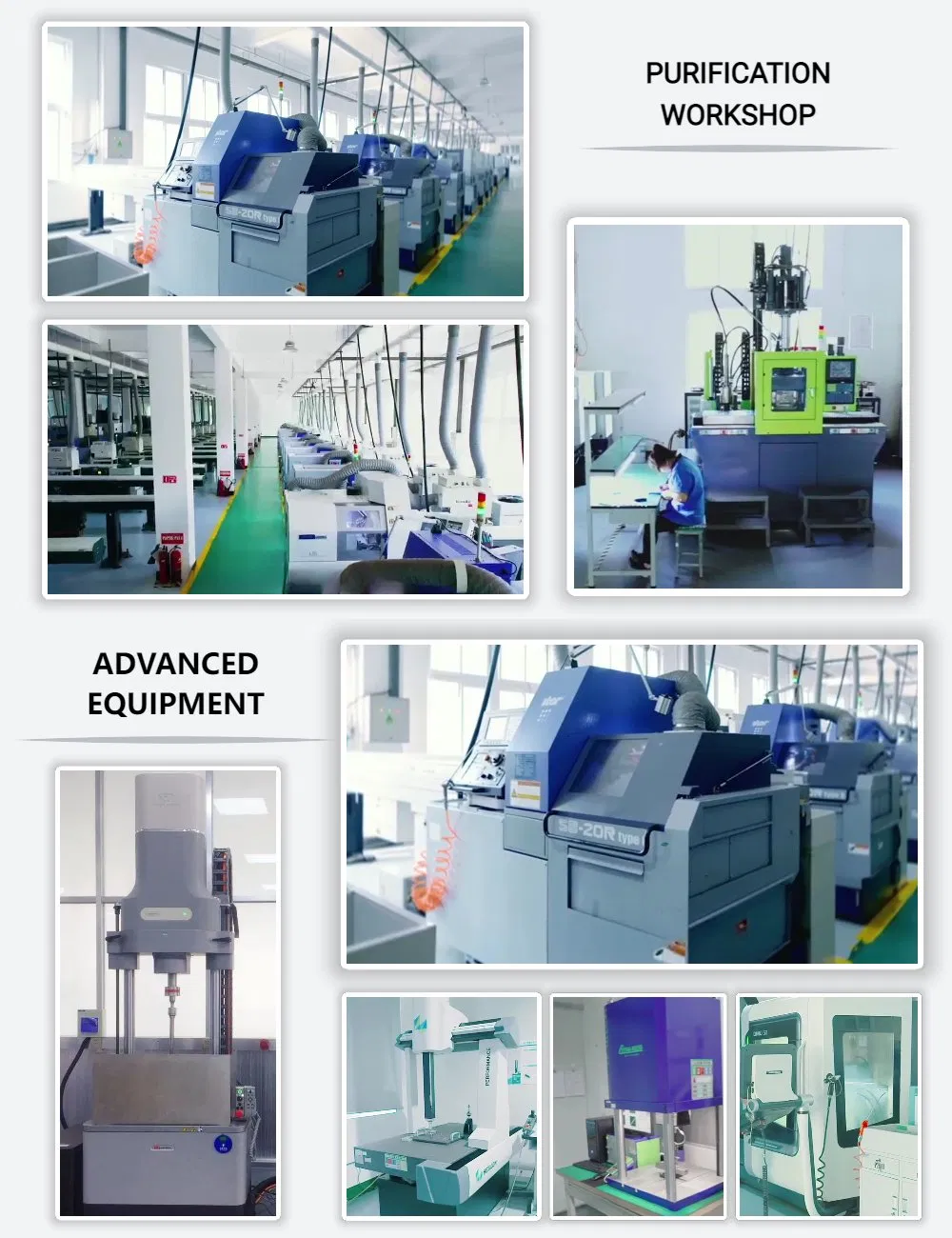

Facilities: Covers an area of 30 thousand square meters with imported high-end CNC machining equipment from the United States and advanced quality detection equipment from Japan.

❓ Frequently Asked Questions

Do you hold international quality certifications?

Yes, we are a certified company holding ISO 9001:2015 and EN ISO 13485:2016 standards, ensuring high-quality orthopedic implants.

What materials are the Proximal Femoral Nails made of?

All nails in this system are manufactured from high-grade Titanium Alloy, which offers excellent biocompatibility and mechanical strength.

How long does shipping usually take?

For items in stock, delivery typically takes 3-5 working days. Larger or non-stock orders may take 30-60 days depending on the quantity.

Are the matched instrument sets available for purchase?

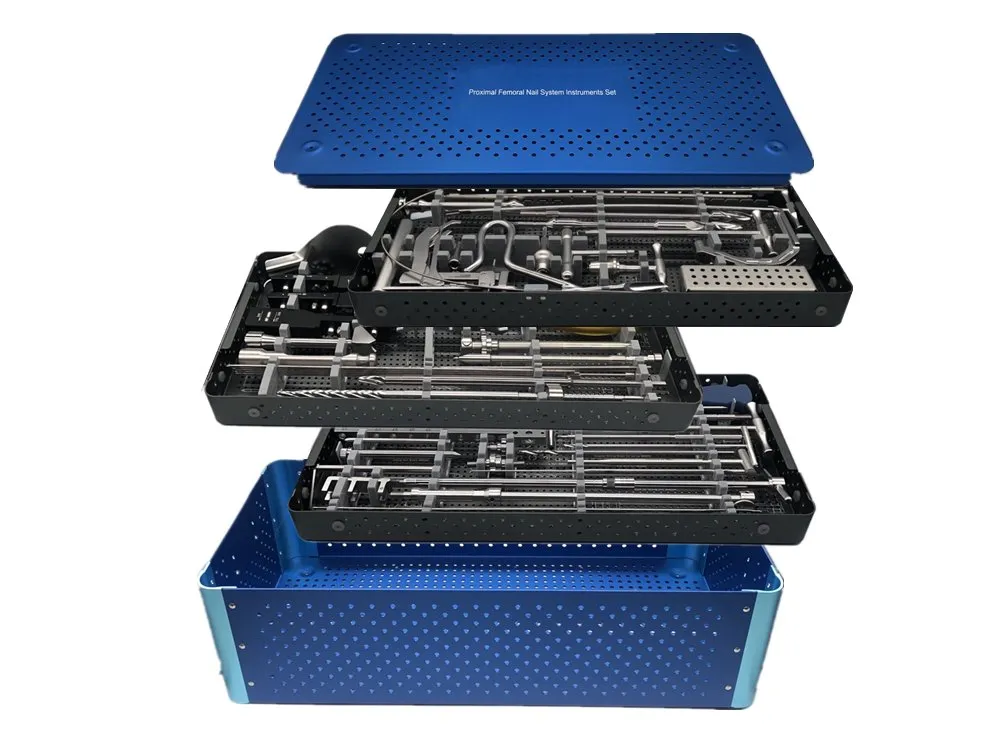

Yes, we provide the GA1X Proximal Femoral Nail System Instruments Set specifically designed for use with these implants.

Do you offer samples for clinical evaluation?

Yes, samples can be provided for evaluation purposes; however, there is an extra charge for sample units.

What is your policy for defective products?

If any goods are found to be defective, please provide photographic evidence. Once confirmed, we will provide a replacement as part of our after-sales support.
