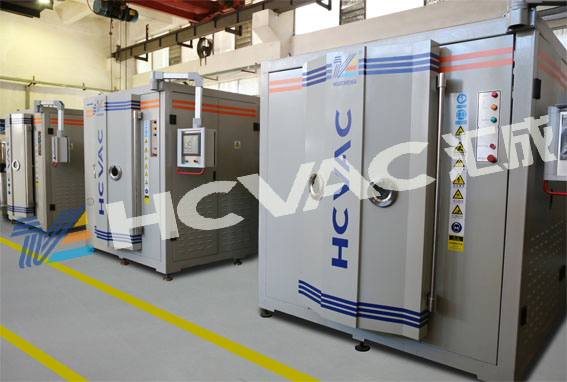

Hcvac Titanium Nitride Gold PVD Ion Plating Equipment, Vacuum Gold Plating System
Hcvac Titanium Nitride Gold PVD Ion Plating Equipment, Vacuum Gold Plating System
Hcvac Titanium Nitride Gold PVD Ion Plating Equipment, Vacuum Gold Plating System
Hcvac Titanium Nitride Gold PVD Ion Plating Equipment, Vacuum Gold Plating System
Hcvac Titanium Nitride Gold PVD Ion Plating Equipment, Vacuum Gold Plating System
1 / 5
Hcvac Titanium Nitride Gold PVD Ion Plating Equipment, Vacuum Gold Plating System
Hcvac Titanium Nitride Gold PVD Ion Plating Equipment, Vacuum Gold Plating System
Hcvac Titanium Nitride Gold PVD Ion Plating Equipment, Vacuum Gold Plating System
Hcvac Titanium Nitride Gold PVD Ion Plating Equipment, Vacuum Gold Plating System
Hcvac Titanium Nitride Gold PVD Ion Plating Equipment, Vacuum Gold Plating System

Hcvac Titanium Nitride Gold PVD Ion Plating Equipment, Vacuum Gold Plating System

Customization: Available
After-sales Service: Free Installing and Training, Technical Support
Warranty: One Year Limited Warranty
Send Inquiry

Product Description

Basic Information
Model NO.
LH-
Type
PVD Vacuum Coating Machine
Coating
Vacuum Coating
Substrate
Steel
Certification
CE, ISO
Condition
New
Product
Ion Plating Equipment
Business Type
Manufacturer/Supplier
Structure
Vertical, Single Door
Control System
Manual Automatic All-in-One
Operating System
PLC Touching Screen
Coating Color
Gold, Rosegold, Silver, Black, Blue Ect
Size
Customized
Chamber Material
Stainless Steel
HS Code
8543300090
Product Description

Titanium Nitride Gold PVD Ion Plating Equipment

PVD Ion plating equipment is a high-efficiency, harmless, and pollution-free ion coating machine. It features a fast deposition rate, high ionization rate, significant ion energy, and easy operation with low maintenance costs and large productive capacity.

Key Characteristics
  • Integrates cold cathode arc discharge self-sustained light unit pulse technique and magnetron sputtering technology.
  • Thinning of particles to significantly improve film properties.
  • Capable of coating both metal and non-metal surfaces.
  • High efficiency multi-functional coating equipment completing processes in a short time.
Applied Industries

This equipment is extensively used for ultra-hard coatings on tools and moulds, and decorative coatings for automotive wheels, ceramics, golf equipment, watches, hotel products, sanitary ware, luminaires, optical frames, and general hardware.

Equipment Showcase

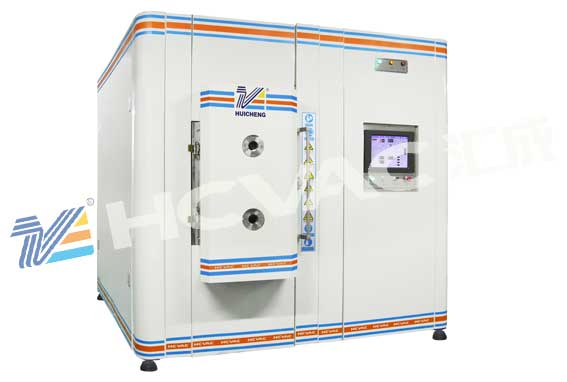

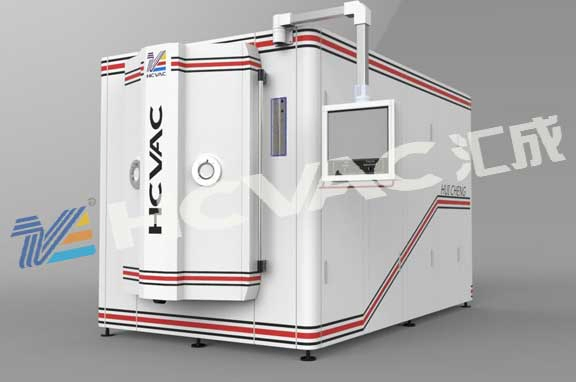

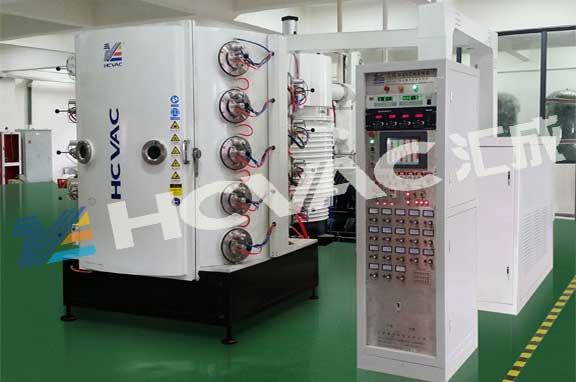

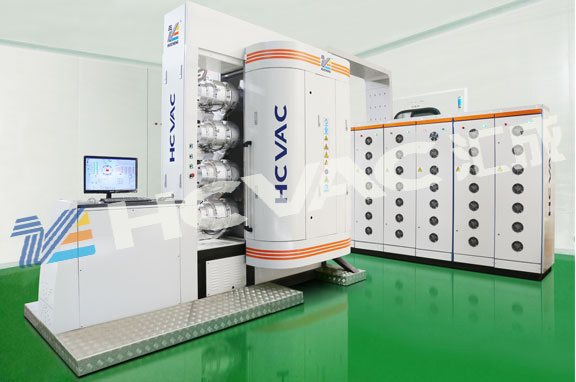

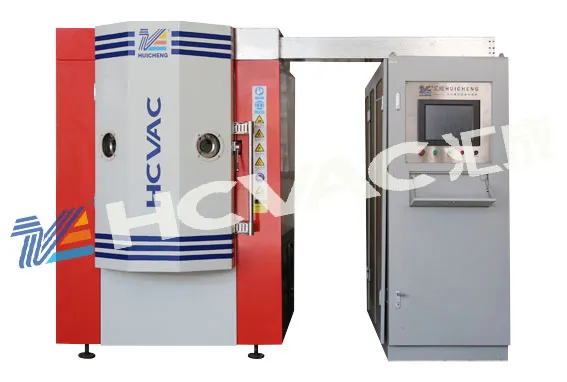

PVD Ion Plating Equipment
Coated Samples

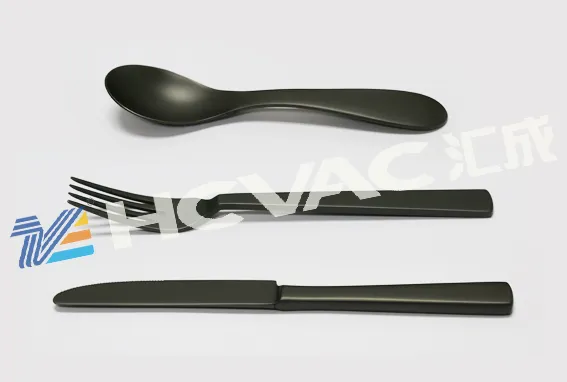

Coated Sample 1

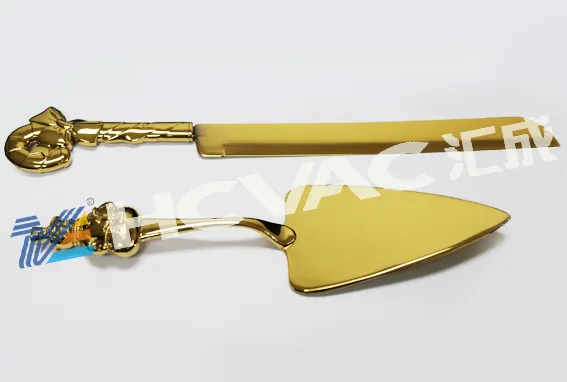

Coated Sample 2

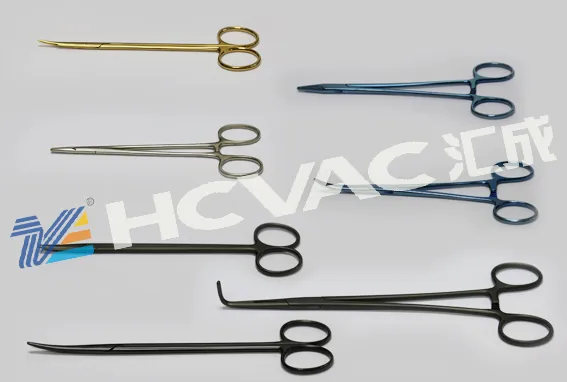

Coated Sample 3

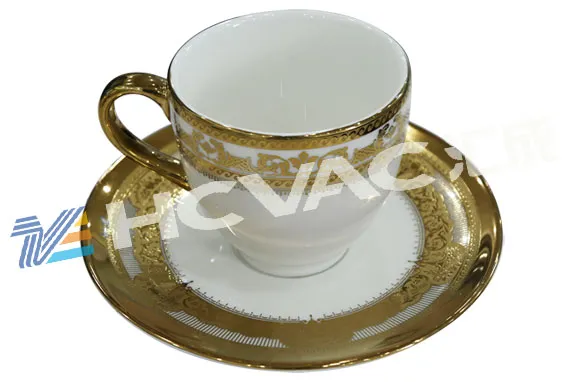

Coated Sample 4

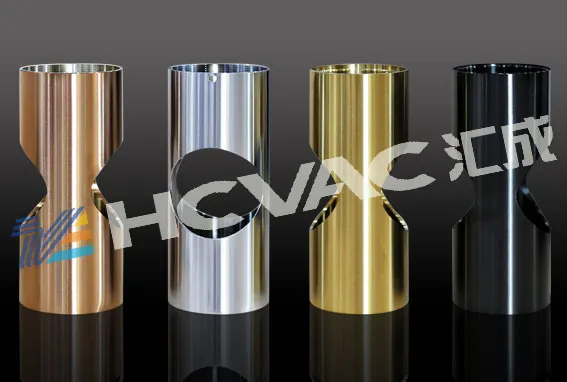

Coated Sample 5
Technical Specifications
Mode / Dimension LH-800 LH-1250 LH-1416 LH-1618
Chamber Size 800*1000mm 1200*1500mm 1400*1600mm 1600*1800mm
Coating Mode 8 Multi-arc targets 12 Multi-arc targets 14 Multi-arc targets 20 Multi-arc targets
Power Source Electric-arc power, Filament power, Pulsed bias power supply
Process Gas Control Mass flowmeter + Electromagnetic ceramic valve
Vacuum System Molecule/Diffusion pump + Roots pump + Mechanical pump (5.0*10^-4 to 10^-5 Pa)
Baking Temp Normal temperature to 350°C (PID control, radiation heating)
Workpiece Motion Public rotation Frequency control: 0-20 RPM
Control Mode Manual / Automatic / PLC + HMI / PC
Frequently Asked Questions
What materials can be coated using this PVD equipment?
The PVD Ion plating equipment can coat a wide variety of materials, including metals like steel, titanium, nickel, chromium, copper, and even non-metal surfaces.
What are the main advantages of PVD ion plating?
It offers high deposition rates, excellent ionization, and strong film adhesion. Furthermore, it is an environmentally friendly process that is harmless and pollution-free.
Which industries typically use these vacuum coating systems?
It is widely applied in tool and mould manufacturing, automotive parts (like wheels), ceramics, watchmaking, sanitary ware, and the hardware industry for both functional and decorative purposes.
Can the machine size be customized for specific needs?
Yes, we can design the dimensions and configuration of the equipment according to the customer's specific technical requirements and production volume.
What colors can be achieved with this coating machine?
Commonly achieved colors include Gold, Rose Gold, Silver, Black, Blue, and various other decorative shades.
Is the operation system easy to use for beginners?
The machine features a PLC Touch Screen with a Manual/Automatic all-in-one control system, making it user-friendly and highly efficient for operators.
