Nerve Injury with Shoulder Arthroscopy

Basic Information

Model NO.:HE-KTT

Certification:ISO13485, ISO

Keywords:Shoulder Traction Frame

Material:Stainless Steel

Loading Capacity:150kg

C Arm Compatible:Yes

Application:Hospital

Warranty:1 Year

Product Description

Nerve injury with shoulder arthroscopy

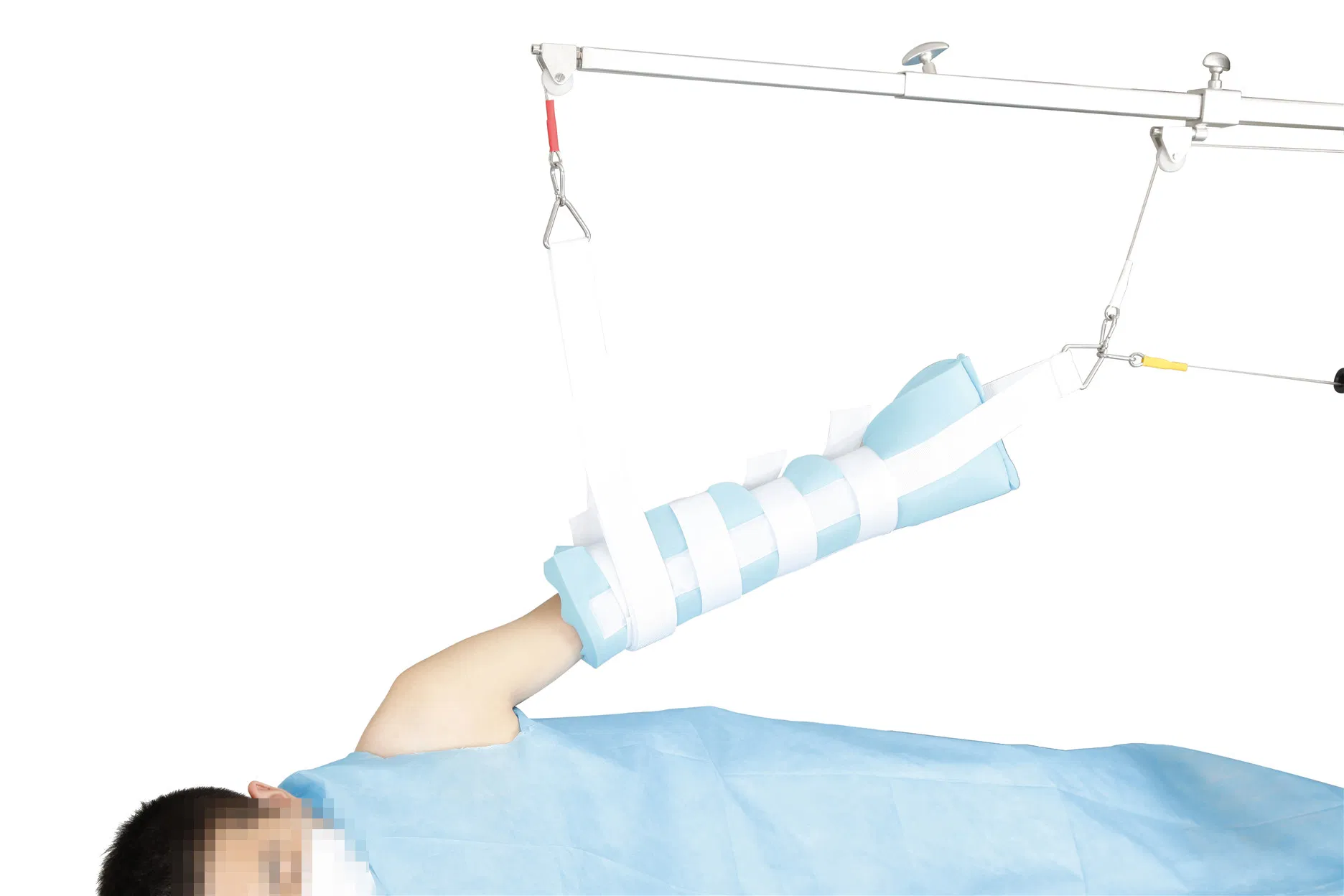

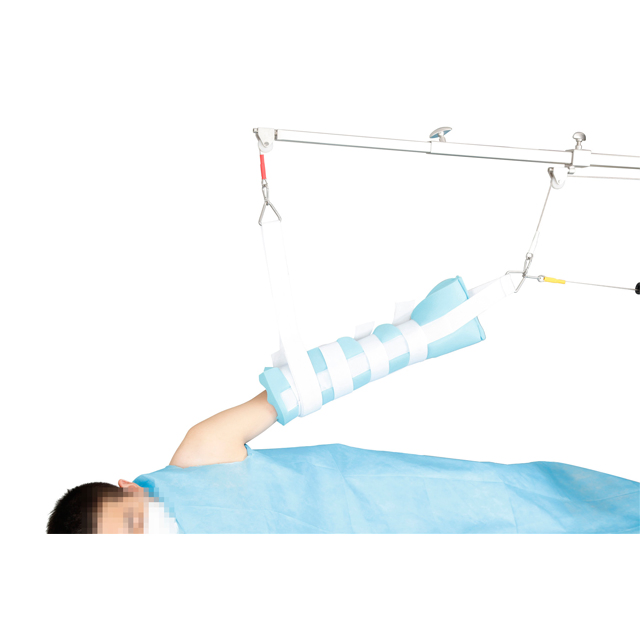

✔Shoulder joint traction frame is specially designed for shoulder arthroscopy surgery, assisting procedures by pulling the arm effectively.
✔Mainly used for muscle tearing and elbow/wrist traction with a simple structure for convenient operation.
✔Equipped with a tension adjustment wheel to obtain maximum traction precisely.
✔Force, angle, and height are fully adjustable; utilizes three hanging rings and brine bags for configurable tension based on patient requirements.
✔Safe and stable design, rotating left/right and adjustable in a 180° direction.

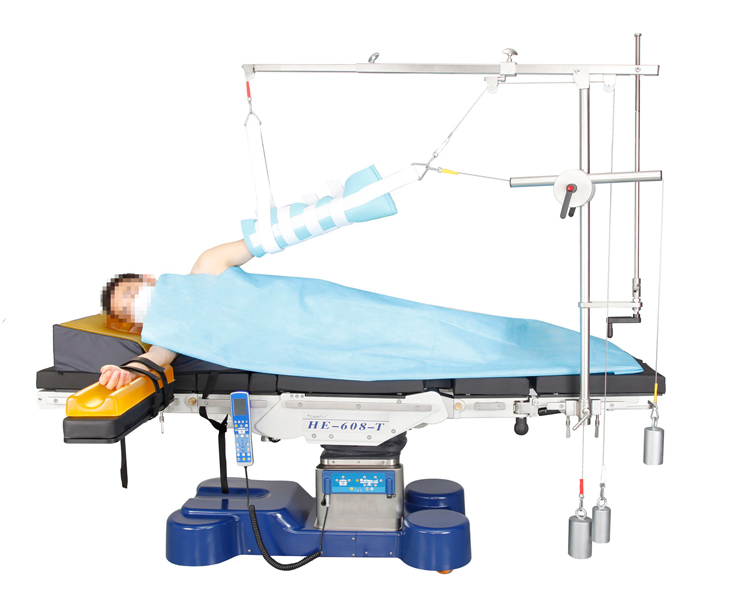

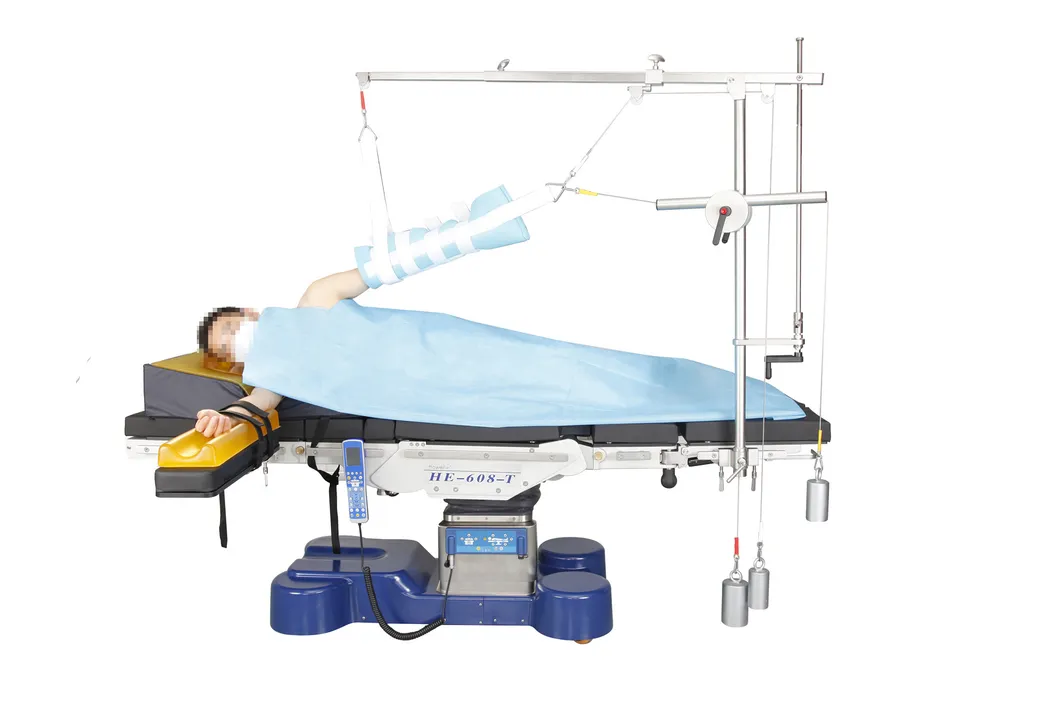

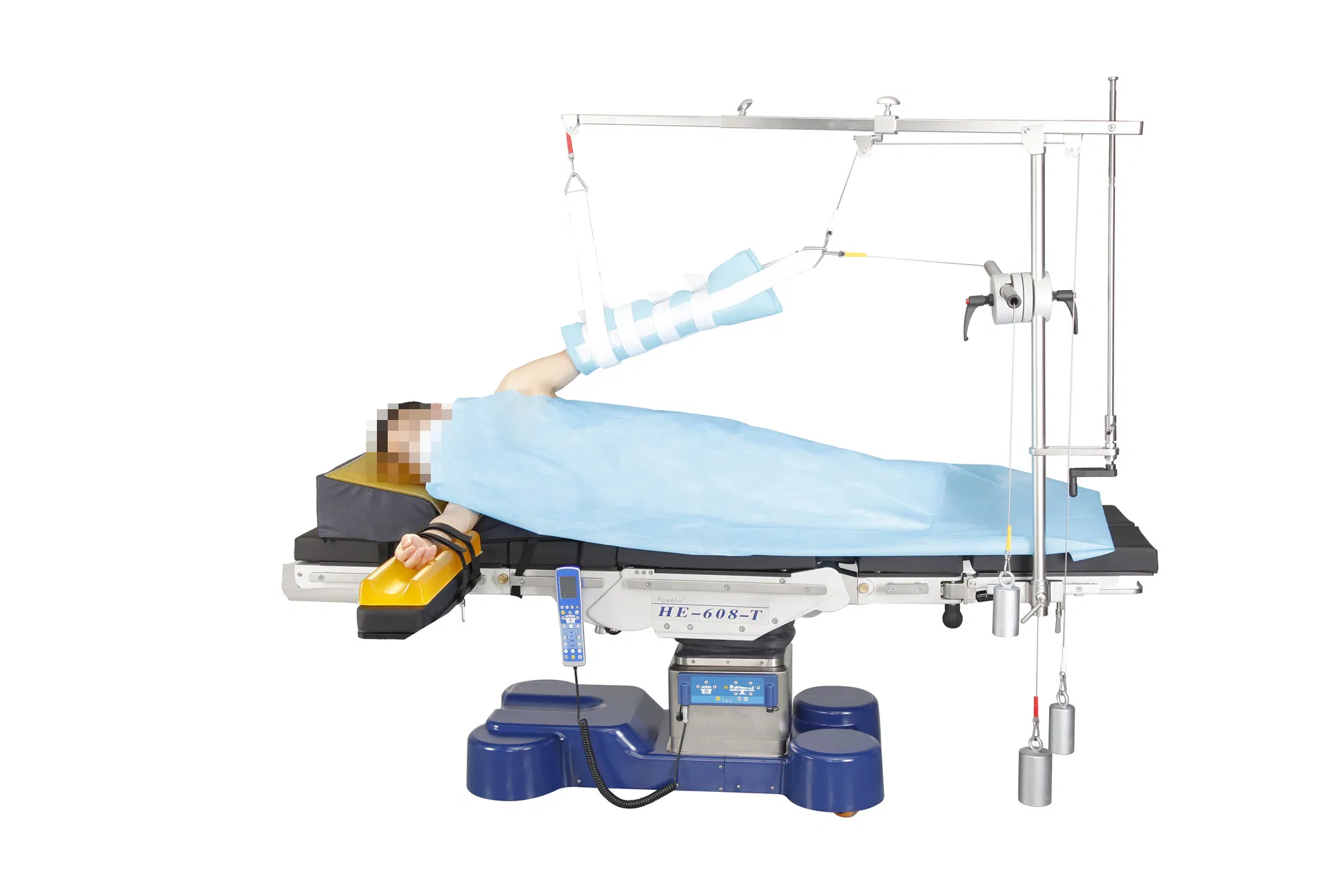

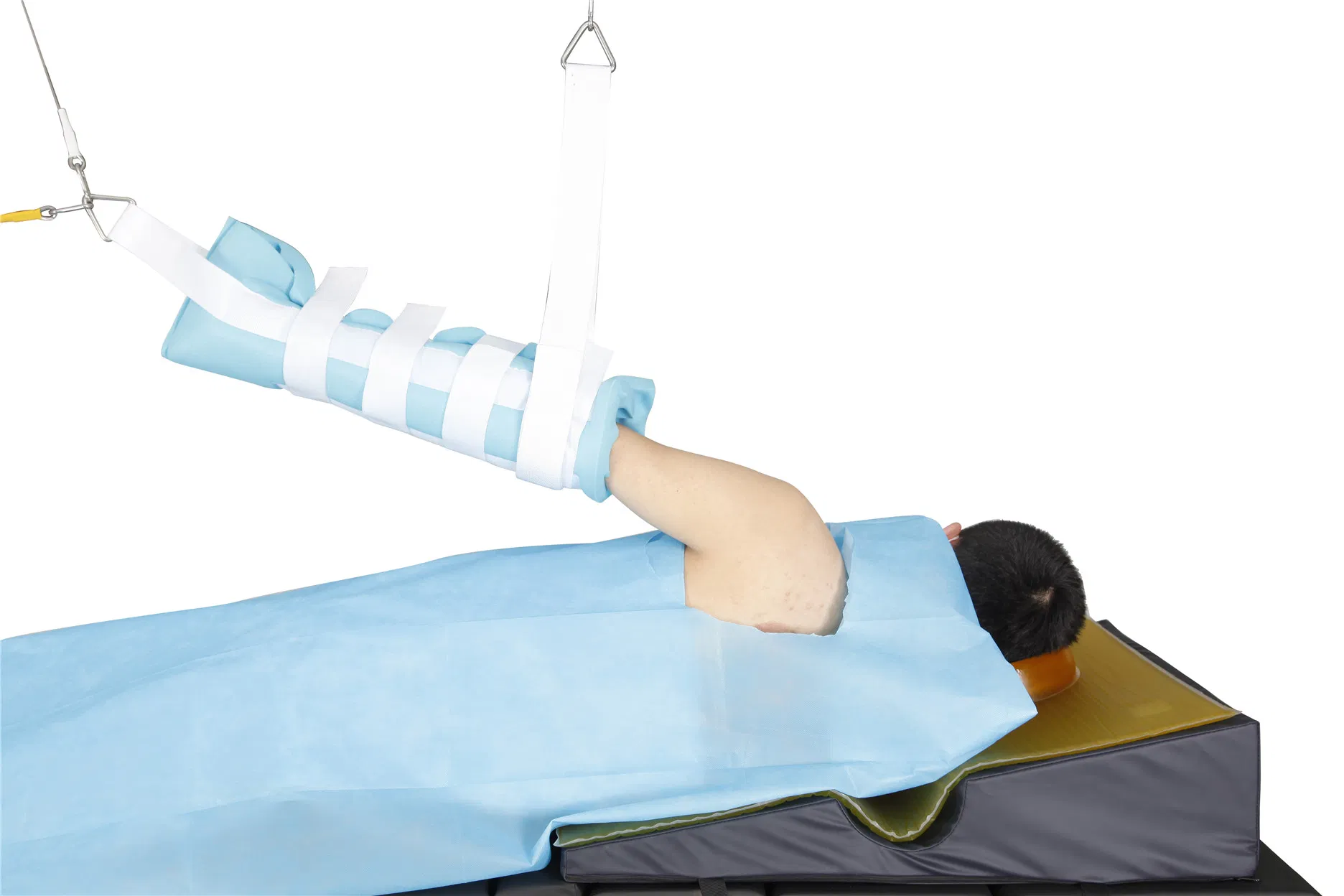

✔Installed on the edge rail of the operating table to pull the patient's arm diagonally from a side-lying position.
✔Comes standard with a movable trolley; the main body is foldable for easy storage.

Technical Specifications

Parameter	Specification Details
Length and Width	1300*1100mm
Traction arm adjust range	750-1250mm
Traction arm up/down adjust angle	±20°
Traction pull line bearing tension	750N
Round rotating device adjust angle	±60°
Side rail locking install size	Customized
Instrument cart size	L 750W730H770mm

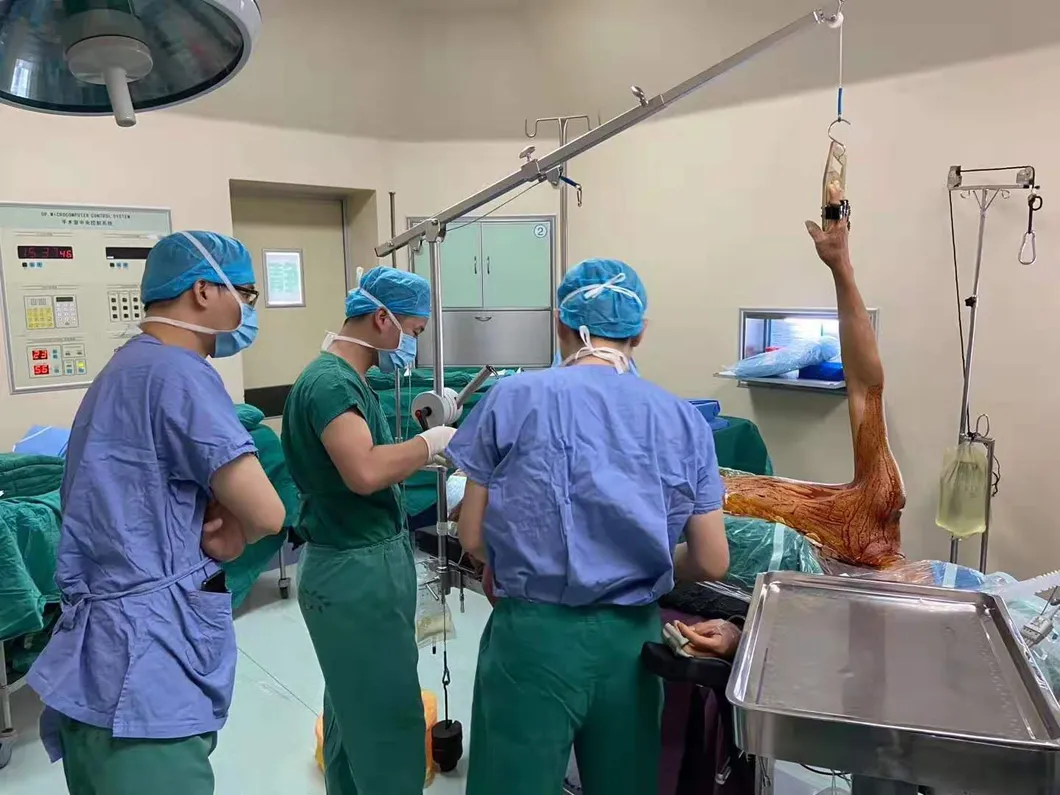

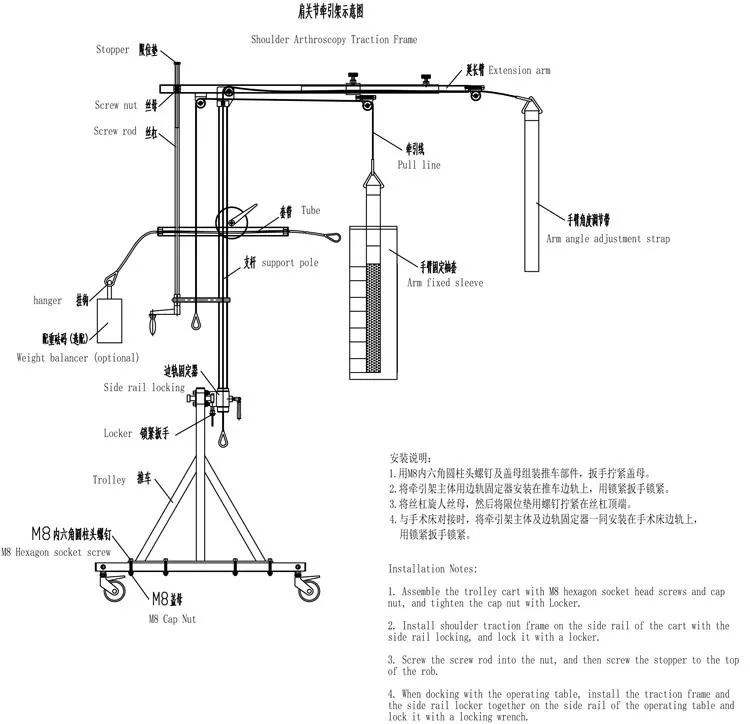

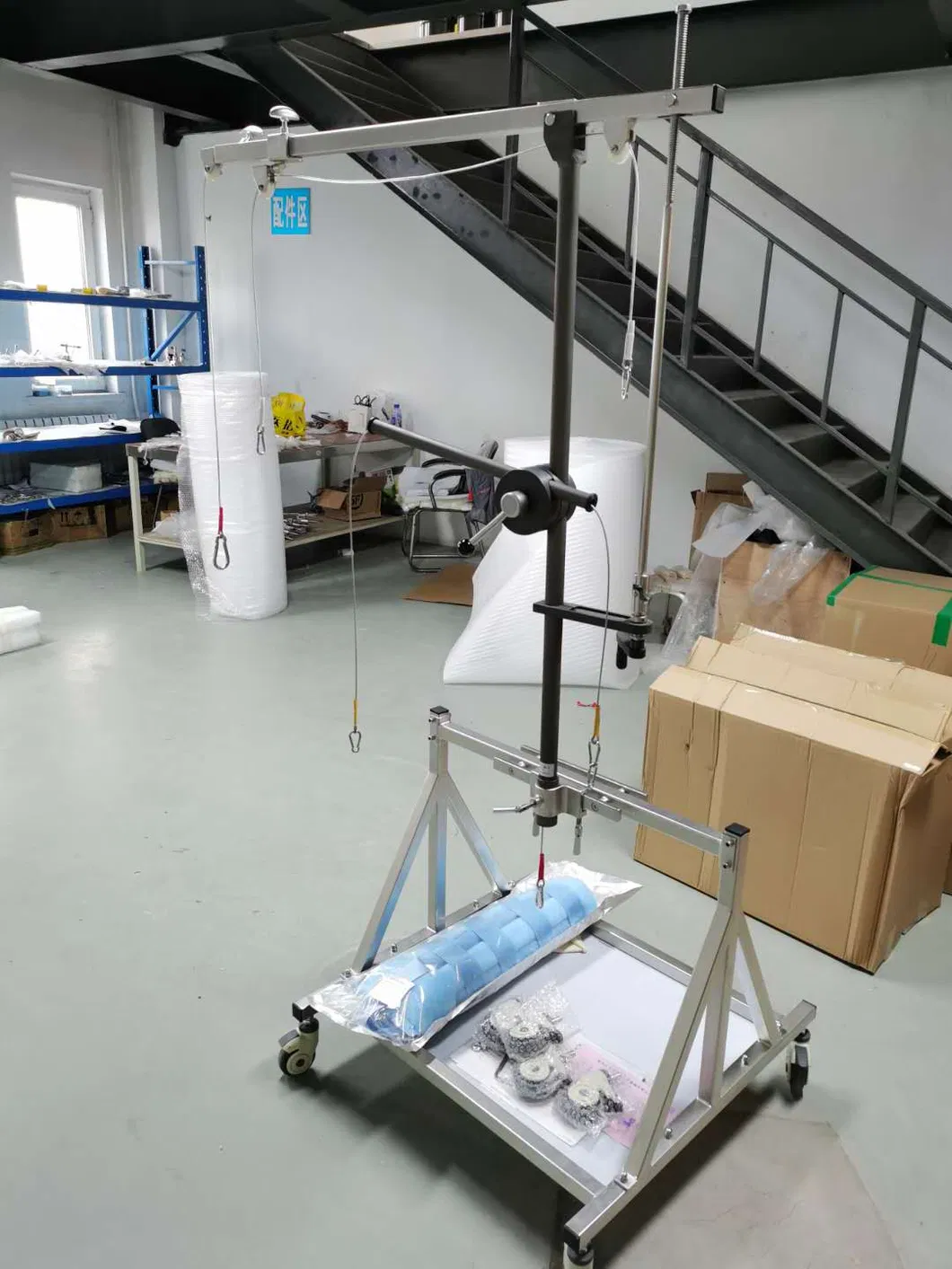

Detailed Photos

Quality Assurance & Packing

FAQ

What surgeries is the HE-KTT traction frame best suited for?

It is specifically designed for shoulder arthroscopy surgery, but it is also highly effective for muscle tearing repairs and elbow or wrist traction procedures.

How is the traction force adjusted during a procedure?

The system features a dedicated tension adjustment wheel. Additionally, the traction force can be fine-tuned using brine bags or weights attached to the three hanging rings.

Is the frame compatible with standard operating tables?

Yes, the traction frame is designed to be installed on the edge rails of standard operating tables. The locking size can be customized to fit specific rail dimensions.

What material is the traction frame made of?

The frame is constructed from high-quality stainless steel, ensuring durability, hygiene, and resistance to clinical cleaning agents.

Does it come with a storage solution?

Yes, the product includes a movable instrument trolley. The main body of the traction frame is foldable, making it easy to move and store when not in use.

What is the maximum patient weight the system can support?

The HE-KTT shoulder traction frame has a robust loading capacity of up to 150kg.
