Product Description

Basic Specifications

Model NO.
H-60SPCC25NP-N
Product Name
Metal Joint
Surface Treatment
Nickel Plated
Wall Thickness
2.5mm
Diameter
28.0mm
Process
Stamp
Material
SPCC (Q/TB201-2011)
Connection Method
Fastener
Application
Worktable/Trolley/Rack/Production Lines
Transport Package
150 PCS / CTN
Certification
GB, RoHS, SGS
Capacity
100,000 PCS/Day

Product Description

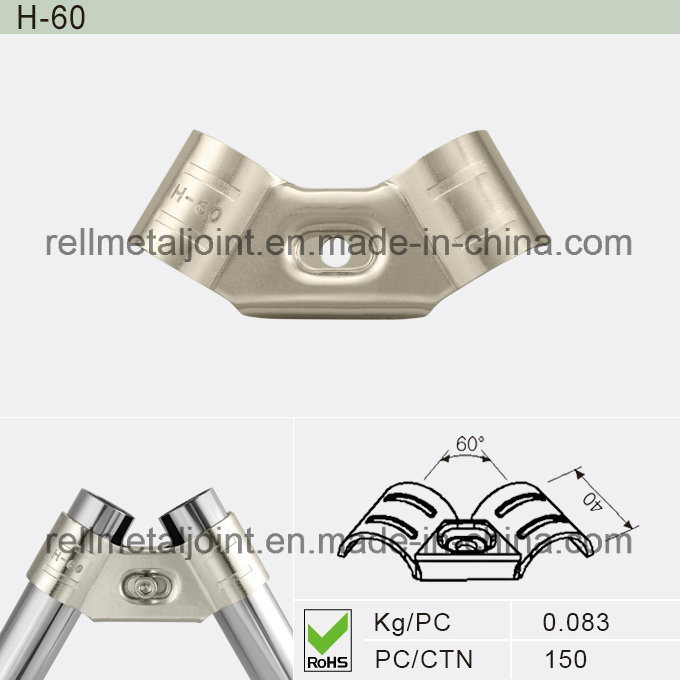

Nickel Plated Joint and Pipe Racking System (H-60)

This metal joint is designed for professional pipe and joint racking systems, providing a sample and easy-to-operate solution for modular structures. With high glossy finish and various loading capacities, it is engineered for efficiency in lean production environments.

ReusableDesigned for multiple assembly and disassembly cycles.
FlexibilityEasily adjustable to fit various structural needs.
Simple OperationFast installation without complex tools.
ExtensibilityCompatible with multiple pipe types including SUS and aluminum.

The nickel-plated joint is ideally used with Φ28mm SUS pipes, aluminum alloy pipes, ABS/PE coated pipes, and galvanized pipes. We follow a "Quality First" principle to ensure consistent performance for industrial users.

Technical Parameters

Category Specification Test Standard Value/Result
Material SPCC Steel Q/TB201-2011 High Strength
Tension Test Loading Capacity Q/RELL002-2012 ≥80Kg
Surface Finish Nickel Plated Salt-Spray Test ≥24h
Compliance Environmental RoHS Certified OK
Weight Net Weight Per Piece 0.083 Kg
Packaging Carton Size 150 Pcs/CTN 280*225*160 mm

Frequently Asked Questions

What types of pipes are compatible with the H-60 metal joint?
The H-60 joint is designed for Φ28mm diameter pipes, including SUS stainless steel pipes, aluminum alloy pipes, ABS/PE coated pipes, and galvanized pipes.
Can these metal joints be reused?
Yes, one of the primary advantages of this system is its reusability. Joints can be easily disassembled and reconfigured for new racks, trolleys, or workstations.
What is the weight-bearing capacity of a single joint?
According to the tension test (Q/RELL002-2012), the joint has a tension resistance of ≥80Kg.
How does the nickel plating benefit the product?
Nickel plating provides a high-gloss aesthetic finish and essential corrosion resistance, passing a salt-spray test of 24 hours or more.
Are the products compliant with environmental standards?
Yes, the joints are RoHS compliant and meet SGS specifications, ensuring they are safe for use in modern production environments.
What is the standard packaging for bulk orders?
The standard packaging is 150 pieces per carton, with a carton size of approximately 280*225*160 mm.
