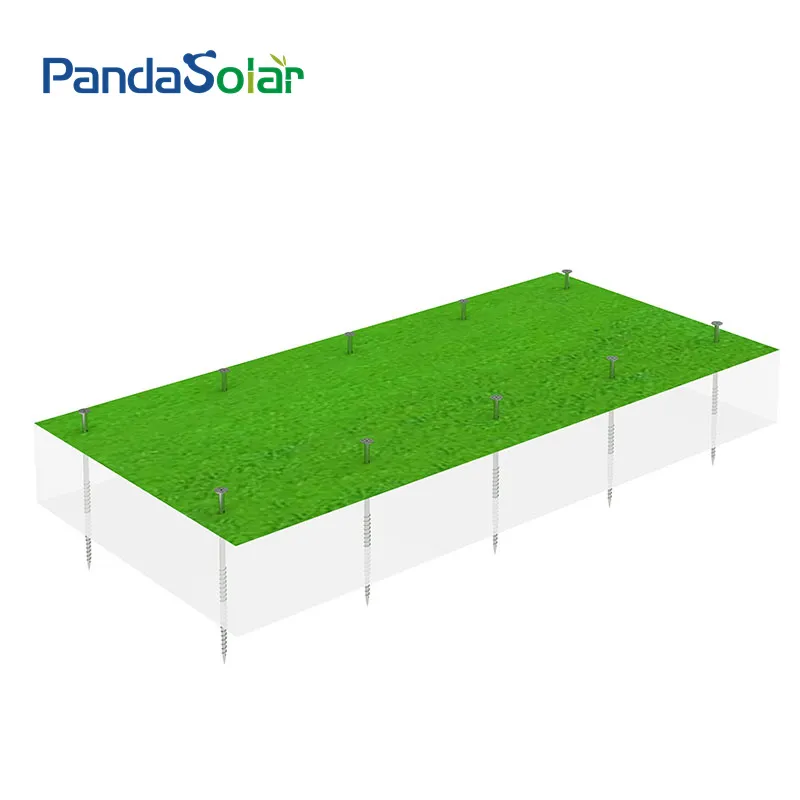

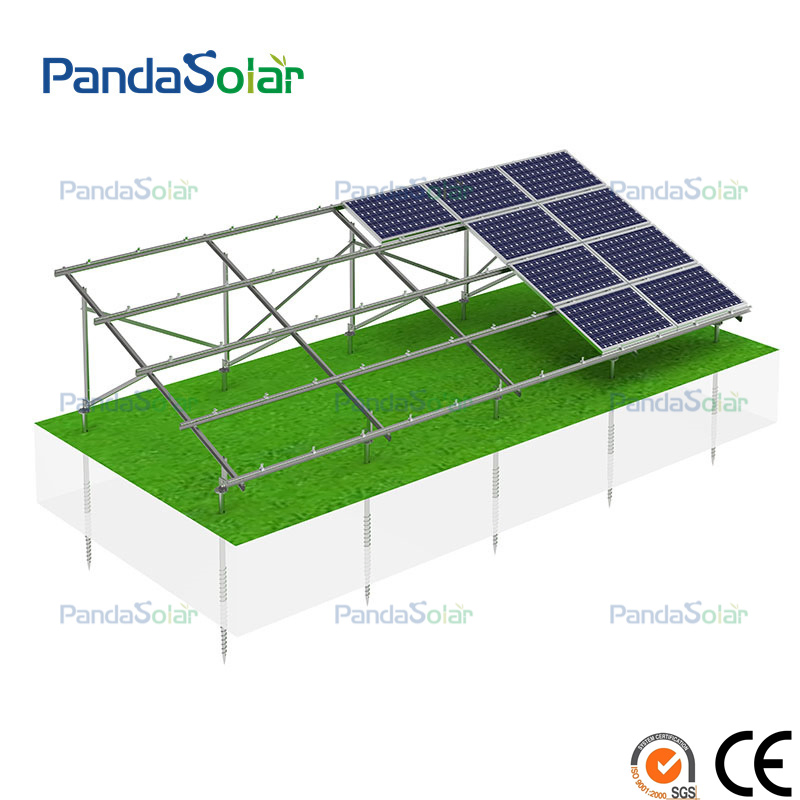

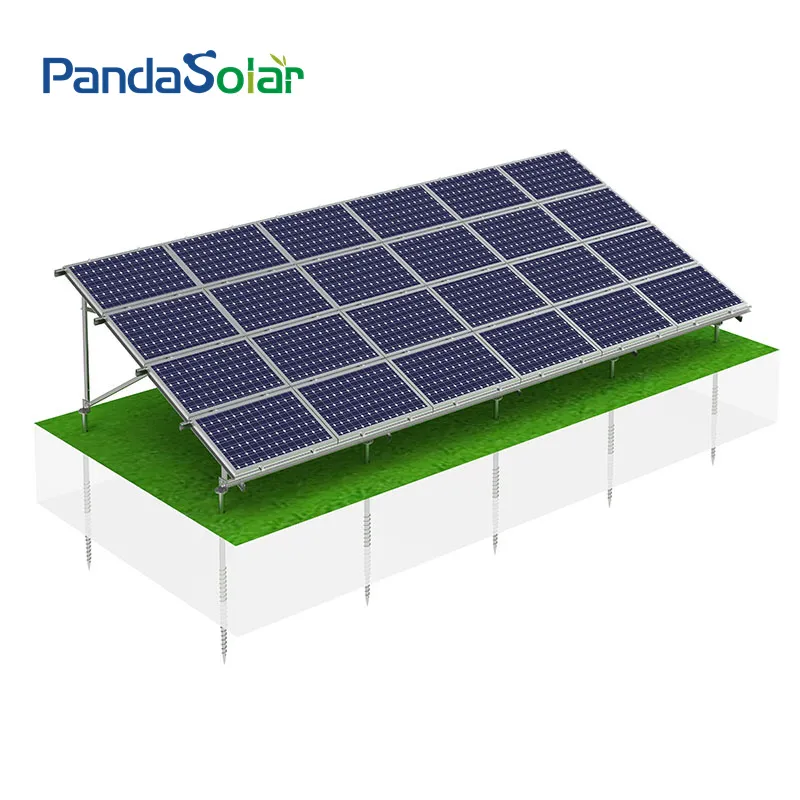

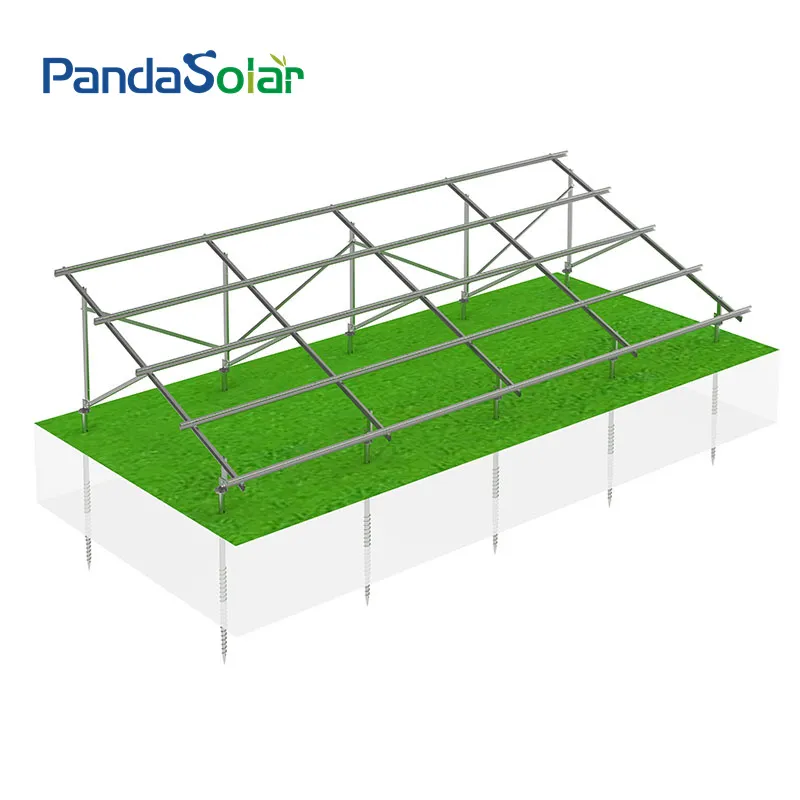

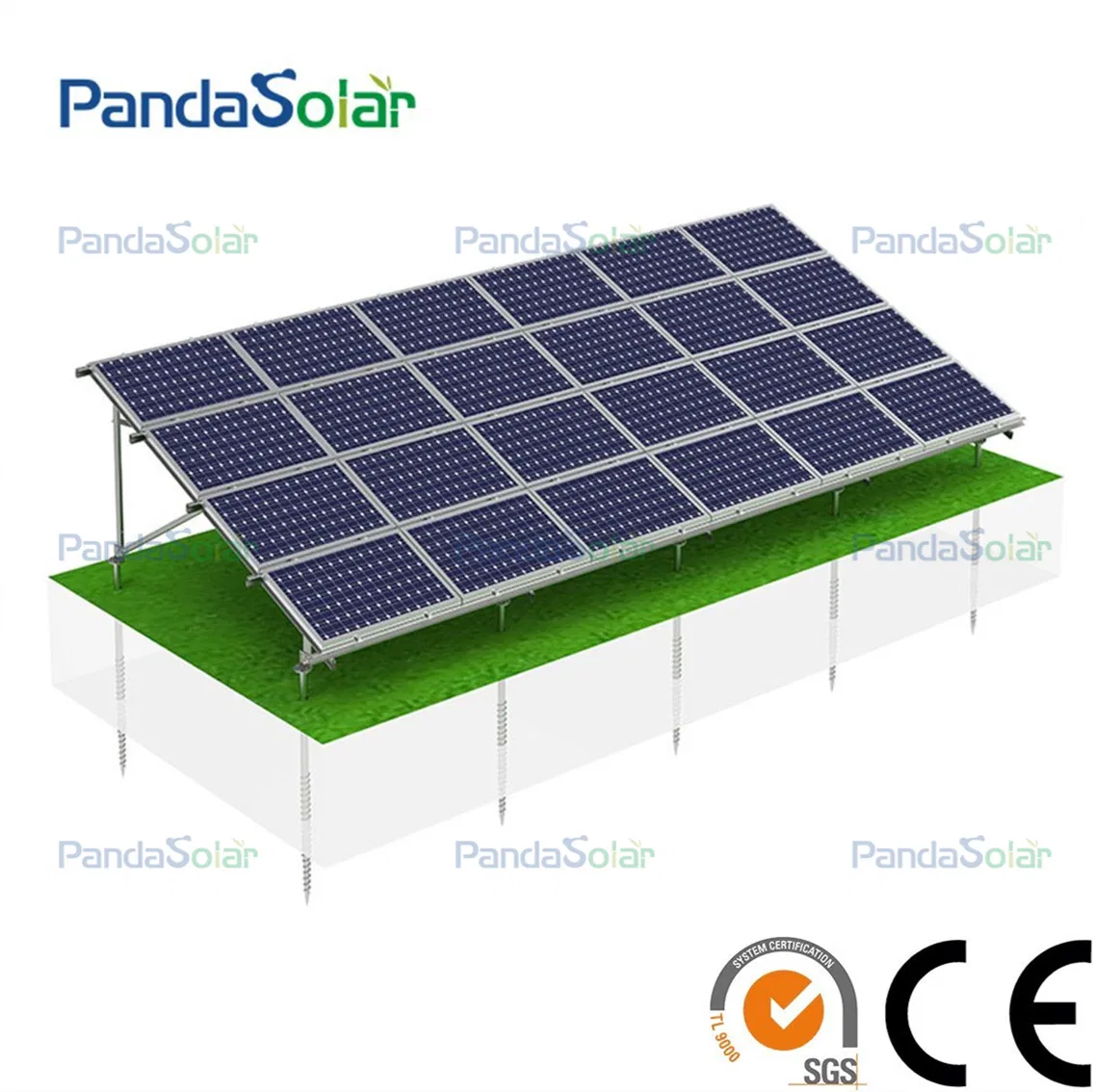

The solar ground mounting bracket is strictly designed according to the maximum wind speed, maximum snow load, solar panel specifications and other design schemes. While ensuring sufficient strength, installation efficiency and labor costs are optimized. The service life of the bracket is significantly extended through high-quality materials. Foundations include: straight into the ground, ground screws, and cement piers.

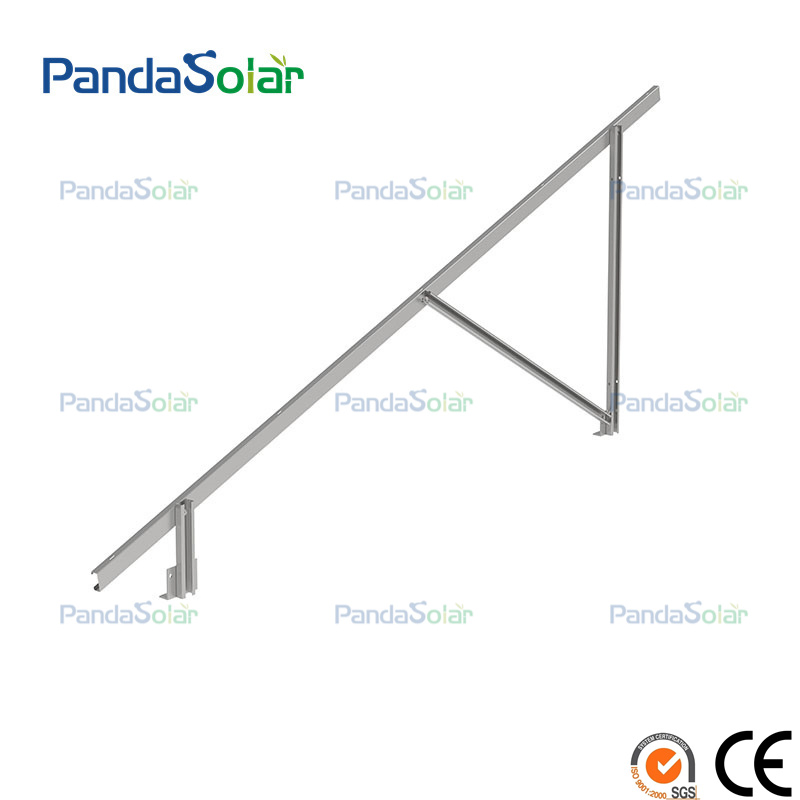

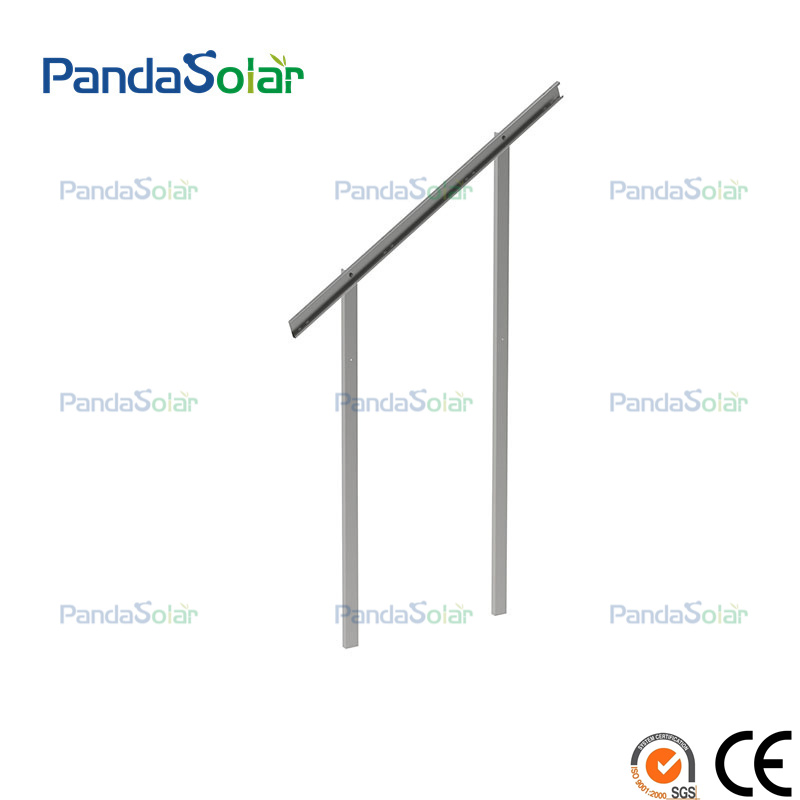

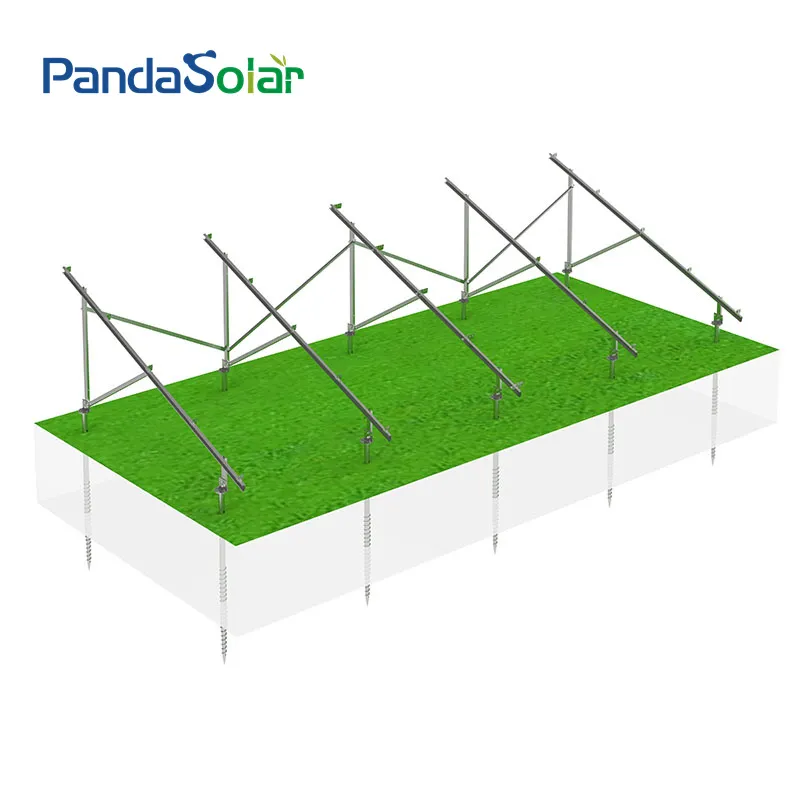

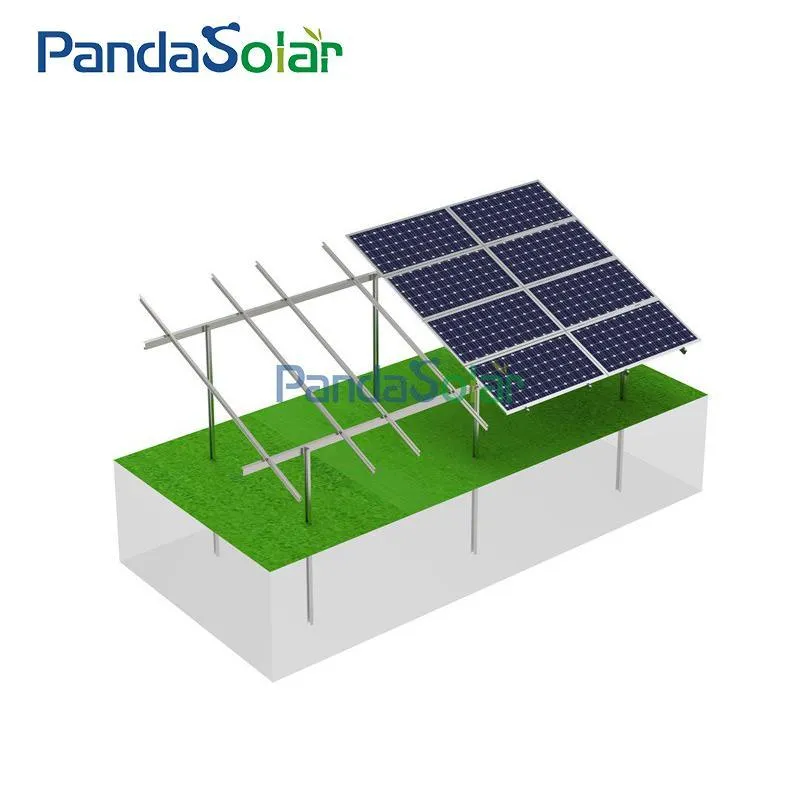

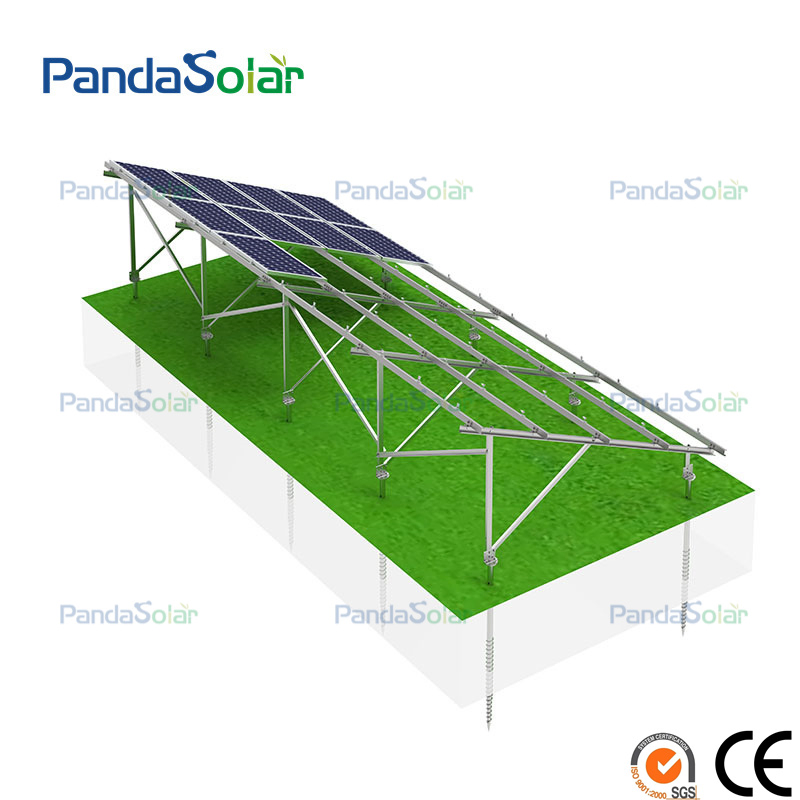

GM4 double column can be ground bolt column or piling column. Ground screw posts allow for precise height adjustments. The piling column offers higher strength and requires high installation accuracy.
| Material | Structure: Mg-Al-Zn & AL-6005-T5 (Anodized); Components: SUS304 & AI6005-5 |
| Application | Commercial and Residential installation |
| Tilt Angle | 0-60° |
| Wind Speed | 0-60 m/s |
| Snow Load | 0-150cm |
| Ground Clearance | 0-1m |
| Design Standard | AS/NZS 1170, DIN 1055, JIS C8955: 2017, IBC 2009 |
| Warranty | 12 years |

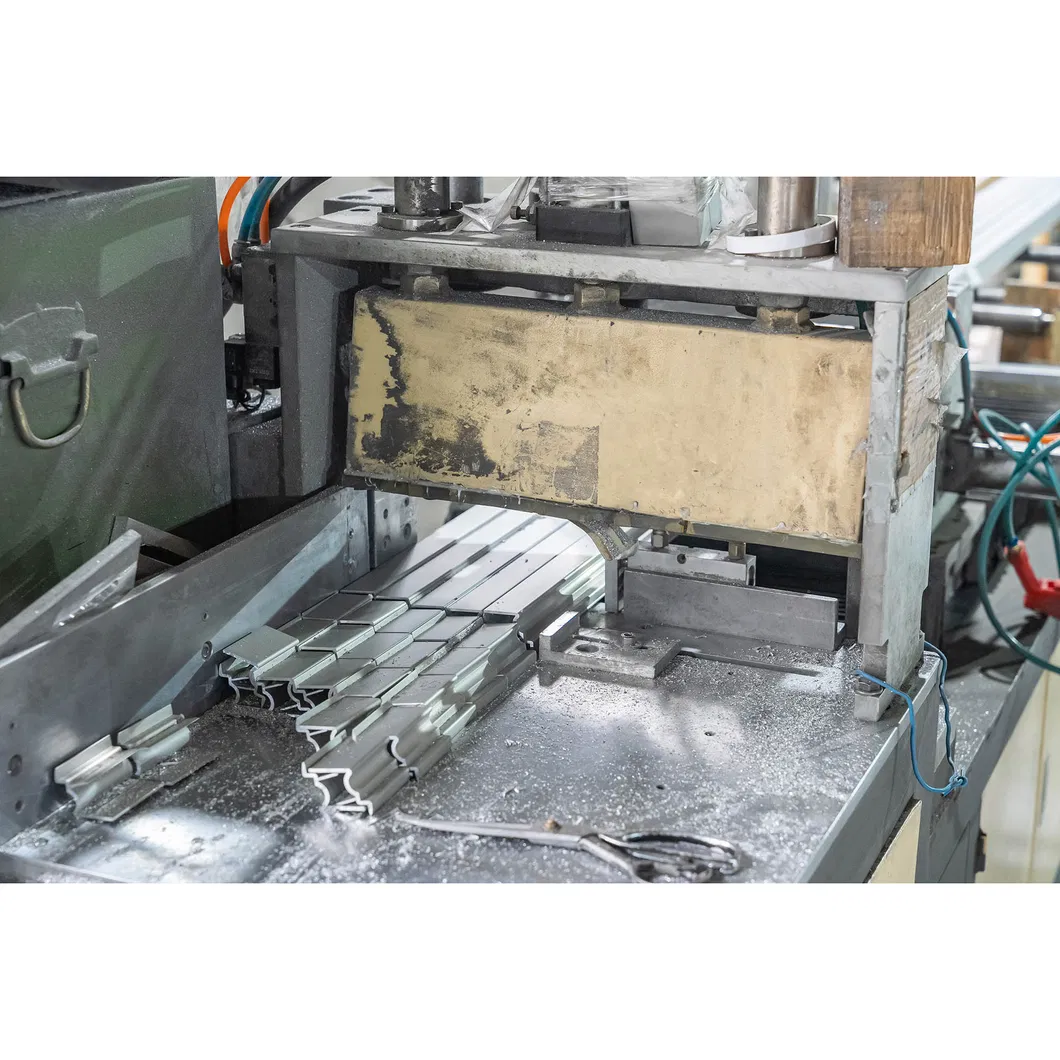

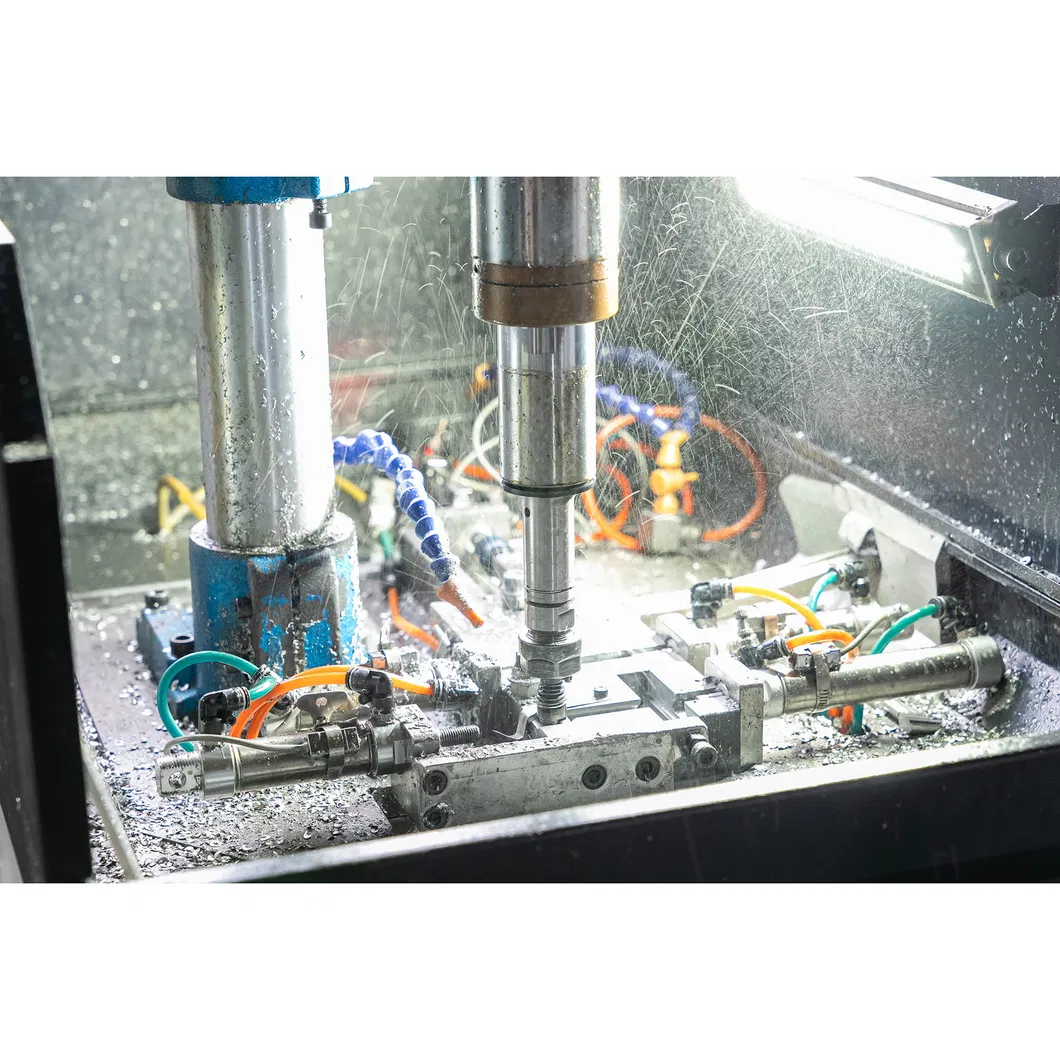

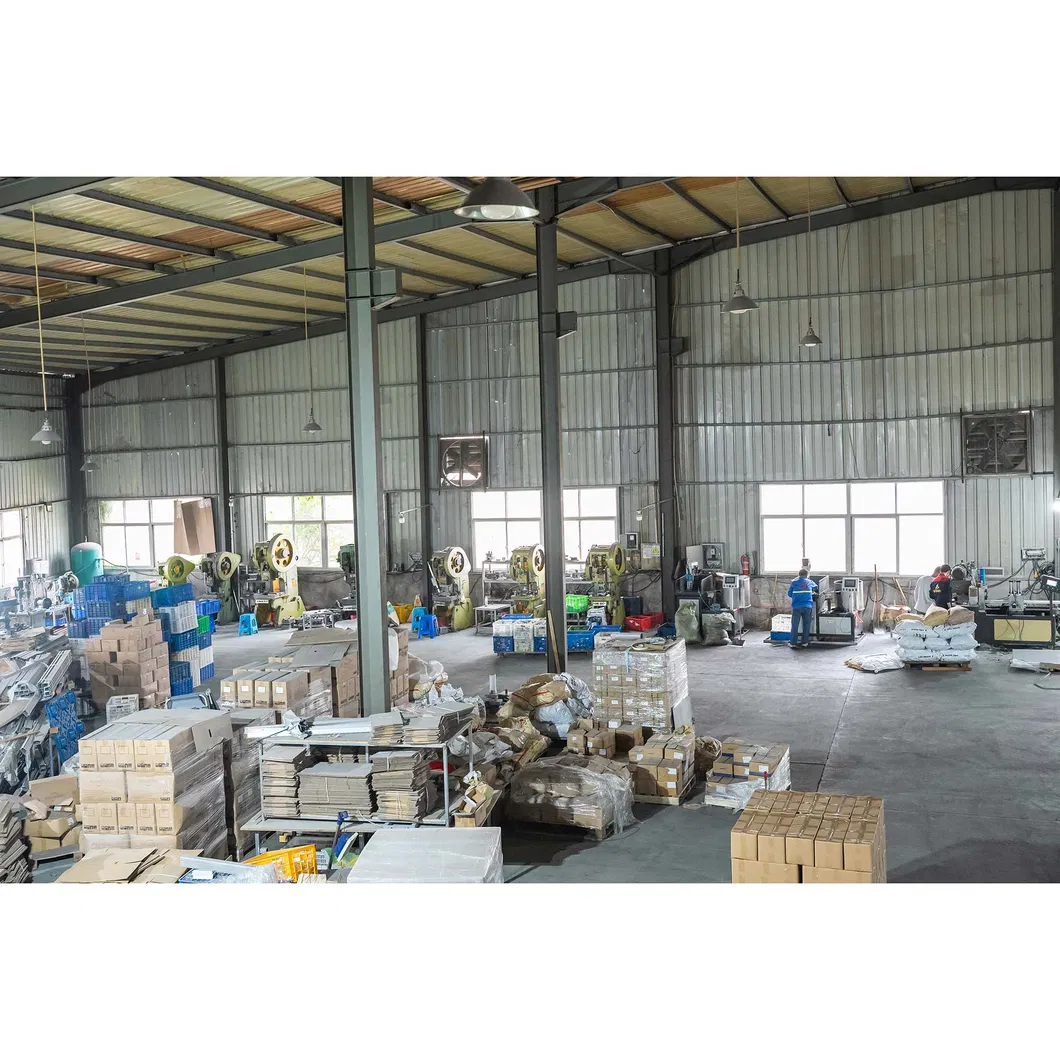

Workshop - Aluminum Material: Professional processing workshop for cutting, drilling, stamping, and forging. Capable of high customization and precision requirements.

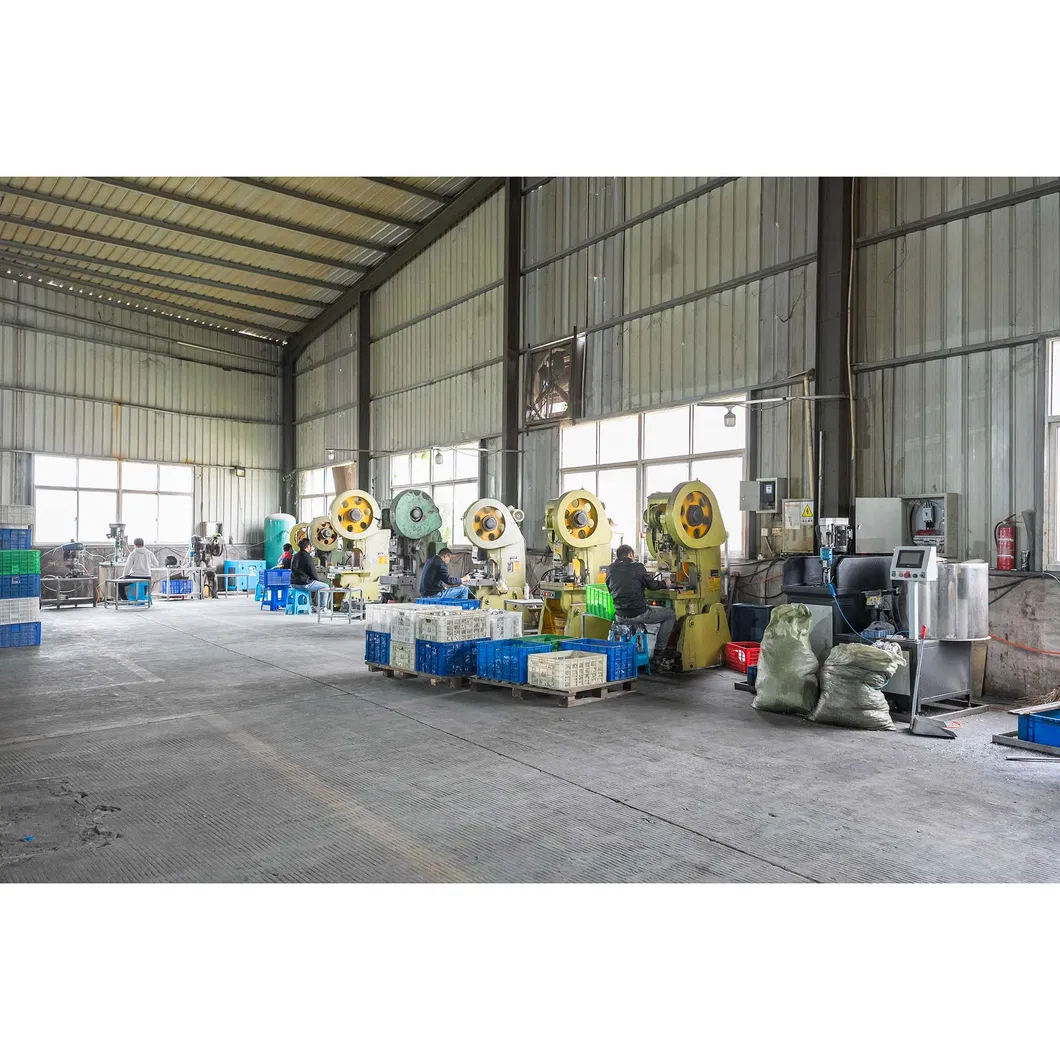

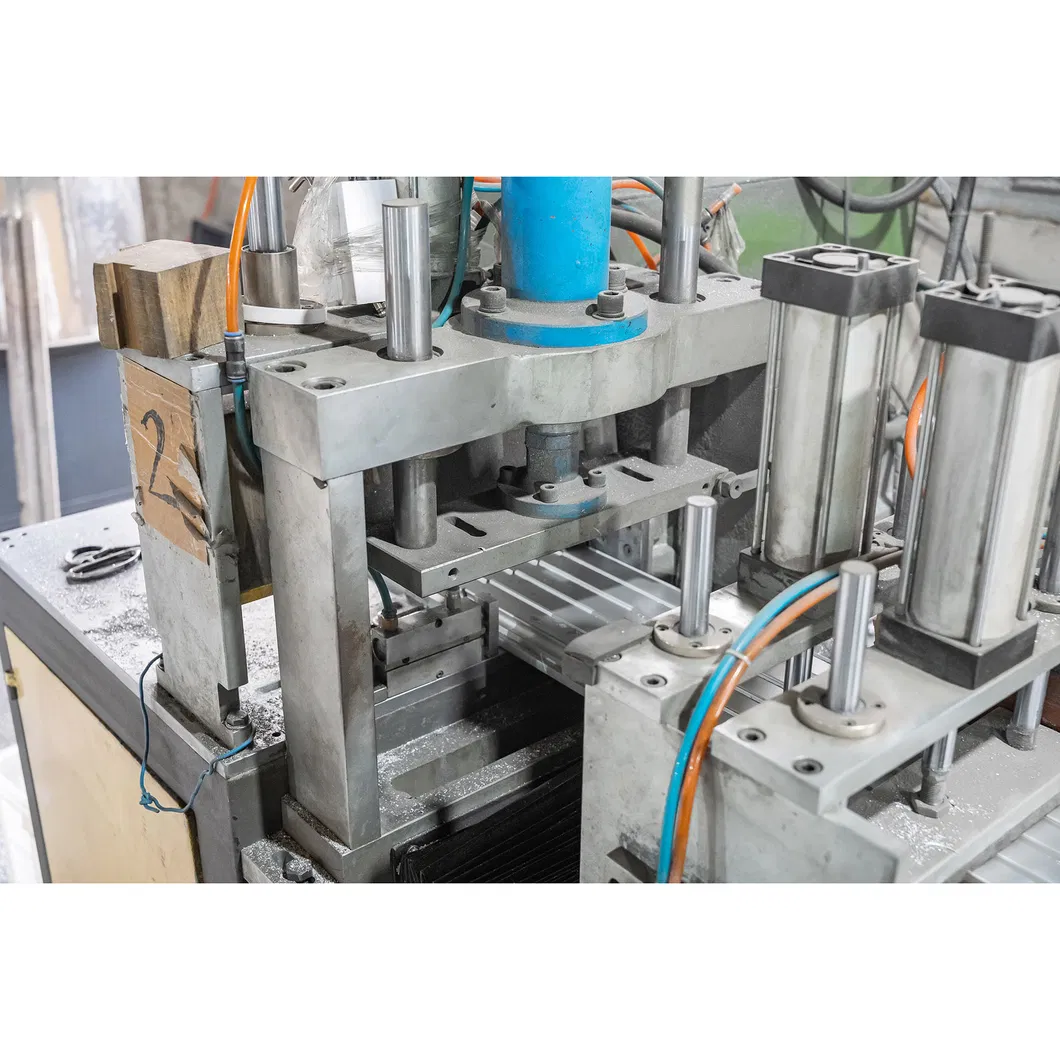

Workshop - Steel Material: Dedicated steel/Magnesium aluminum zinc processing workshop with 6 production lines and several molding machines. Productivity reaches 40-50MW per month.
