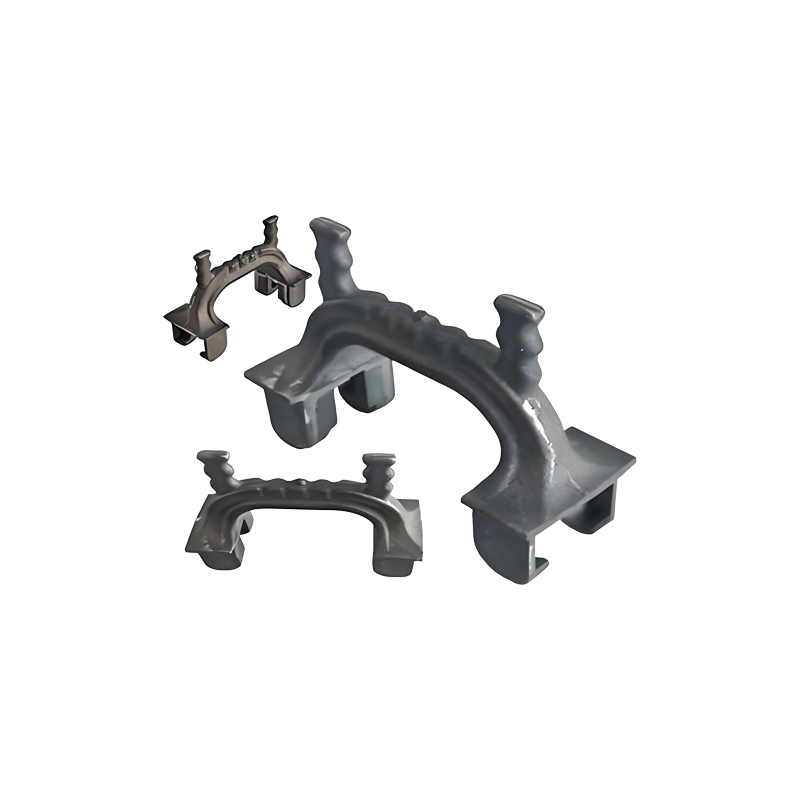

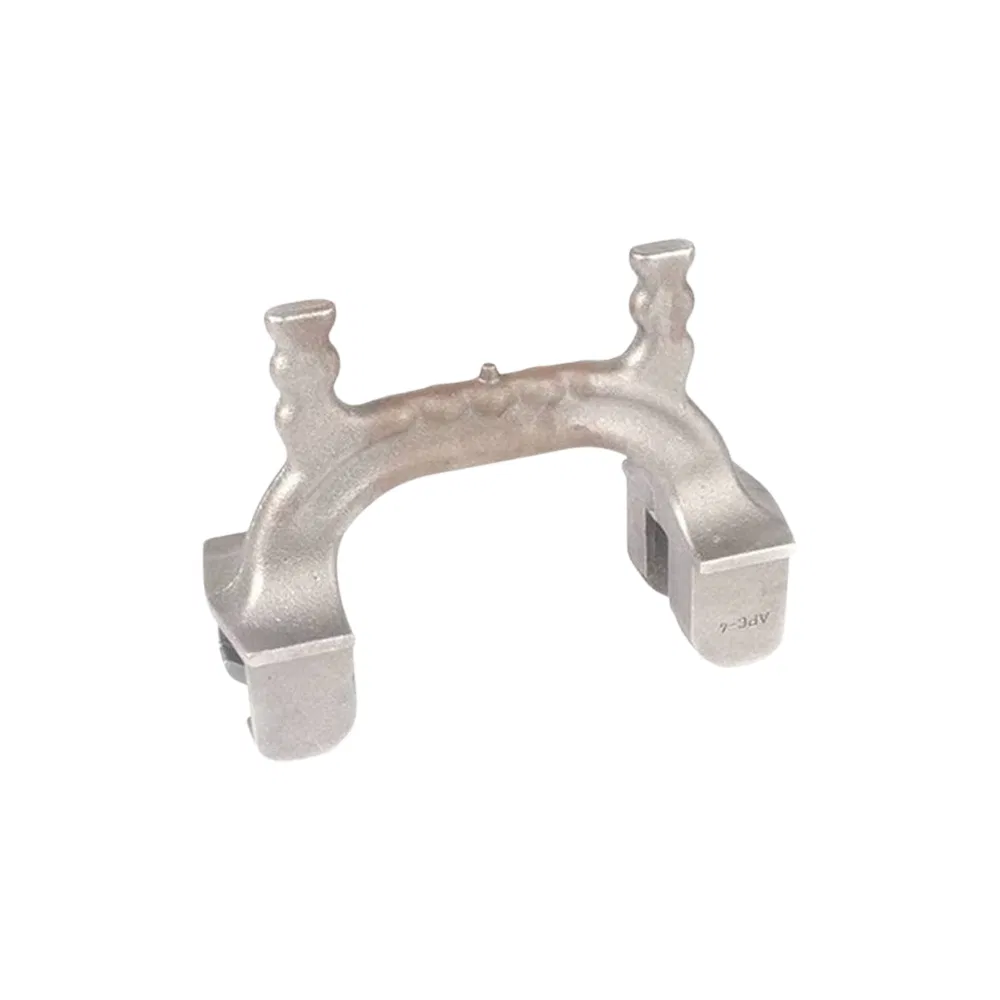

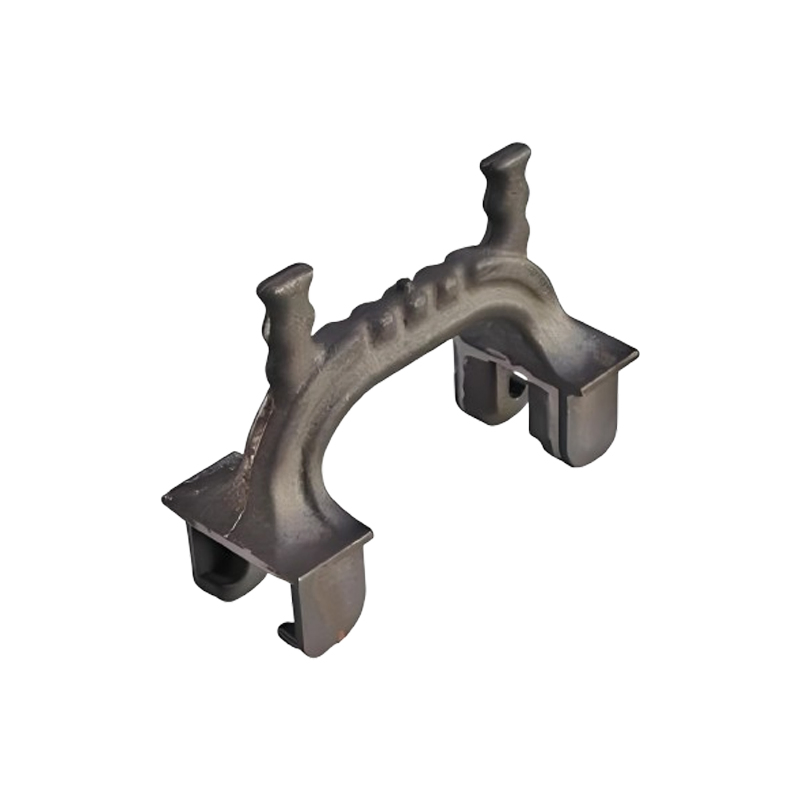

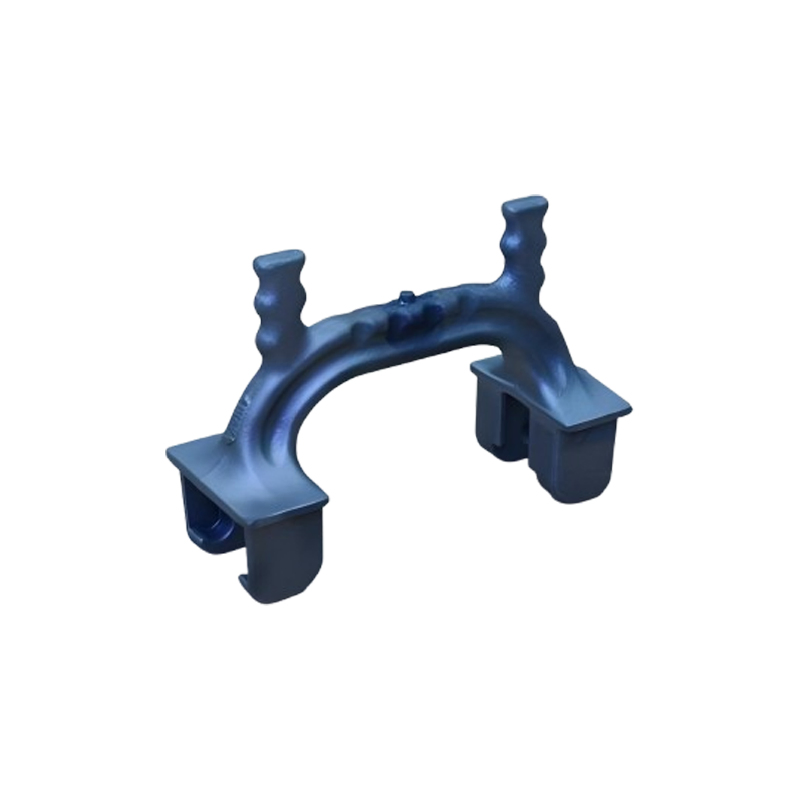

Railway Construction Parts Sand Casting Steel Parts Rail Shoulder

i

Basic Information

Model NO.

APC-4 Rail Shoulder

Certification

ISO9001

Type

Rail Shoulder

Material

Ductile Iron

Process

Sand Casting

Surface

Nature Color/HDG

Feature

Anti-Corrosion

Standard Weight

4.2 Kg/PC

Origin

China

D

Product Description

Rail shoulder is cast in concrete rail ties to fix elastic rail clips. There are two primary types available: the cast-in shoulder and the weld-on rail shoulder, both essential for the secure fixing of elastic rail clips.

Material and Manufacturing Process

The Pre-embedded Iron Base is typically manufactured from high-quality ductile cast iron or steel. This provides the necessary structural strength and durability to withstand intense forces exerted by passing trains, maintaining the long-term integrity of the railway system. We utilize precision sand casting techniques to ensure dimensional accuracy and reliability.

Installation and Application

During railway construction, the Pre-embedded Iron Base is installed within the concrete sleeper during the pouring process. Once the concrete sets, it provides a stable platform for attaching elastic fasteners, securing the rail to the sleeper and preventing track movement or deformation.

S

Technical Specifications

Parameter	Details
Product Name	Rail Shoulder
Type	APC Rail Shoulder
Casting Standard	GOST 7293-85
Processing	Sand casting
Surface Treatment	Nature Color / Hot Dip Galvanized (HDG)
Feature	Good Hardness & Anti-Corrosion
Application	APC Clip Rail Fastening System
Weight	4.2 kg/pc
Warranty	1 Year

V

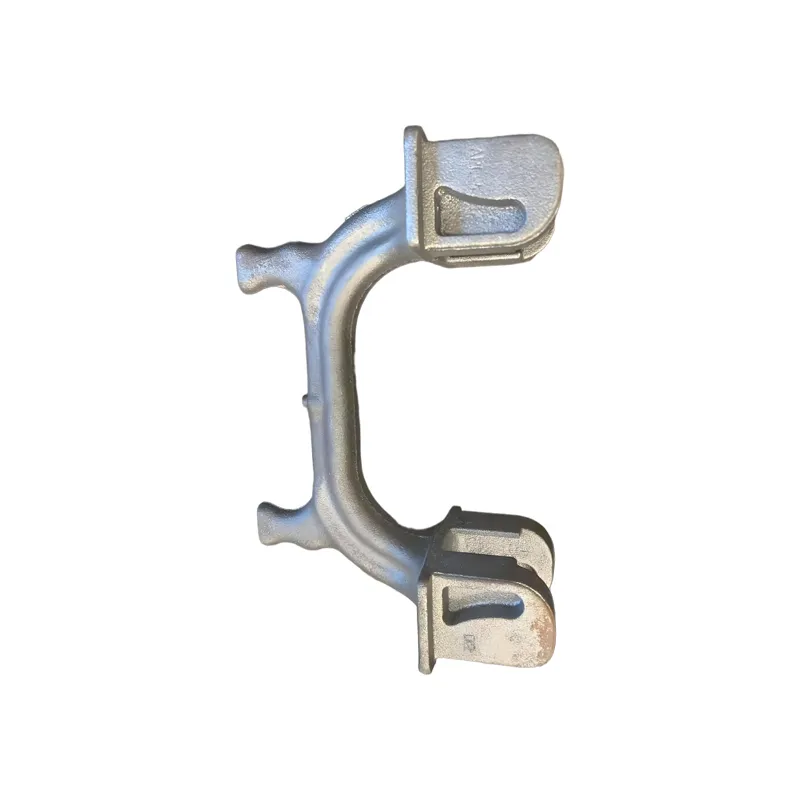

Visual Display

?

Frequently Asked Questions

What are the main factors to consider when selecting track accessories?

Key factors include compatibility with existing track specifications, adherence to international quality standards, material durability for specific load requirements, and overall cost-effectiveness.

How is the quality of the APC-4 Rail Shoulder ensured?

Quality is ensured through rigorous testing, adhering to ISO9001 certification, and following casting standards such as GOST 7293-85. Each batch undergoes thorough quality control procedures.

Can you provide customized solutions for specific railway projects?

Yes, we offer customized solutions tailored to specific project requirements. Our technical team can work with you to understand specific load and environmental needs to provide tailored products.

What surface treatments are available for the rail shoulders?

We typically offer Nature Color or Hot Dip Galvanized (HDG) finishes. HDG is highly recommended for environments where superior anti-corrosion performance is required.

What is the standard weight and material of the APC-4 model?

The standard weight for the APC-4 Rail Shoulder is 4.2 kg per piece. It is primarily manufactured using high-grade Ductile Iron via a sand casting process.

Why is the pre-embedded iron base vital for railway safety?

It provides a secure and stable foundation for the rail, preventing track movement and deformation. This ensures the track remains aligned, which is crucial for preventing derailments and accidents.
