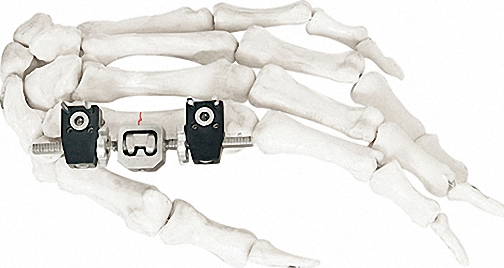

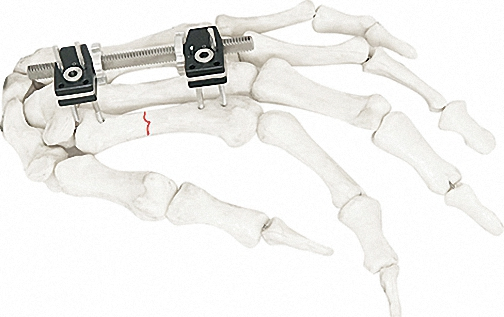

Reliable External Fixator for Bone Fixation, White & Black, Stainless Steel
Reliable External Fixator for Bone Fixation, White & Black, Stainless Steel
Reliable External Fixator for Bone Fixation, White & Black, Stainless Steel
Reliable External Fixator for Bone Fixation, White & Black, Stainless Steel
Reliable External Fixator for Bone Fixation, White & Black, Stainless Steel
1 / 5
Reliable External Fixator for Bone Fixation, White & Black, Stainless Steel
Reliable External Fixator for Bone Fixation, White & Black, Stainless Steel
Reliable External Fixator for Bone Fixation, White & Black, Stainless Steel
Reliable External Fixator for Bone Fixation, White & Black, Stainless Steel
Reliable External Fixator for Bone Fixation, White & Black, Stainless Steel

Reliable External Fixator for Bone Fixation, White & Black, Stainless Steel

Customization: Available
Application: Orthopedic, Neurosurgery, Microsurgery
Material: Steel
Send Inquiry

Product Description

Basic Specifications

Model NO.External Fixation
FeatureReusable
CertificationCE, ISO13485
ColorWhite & Black
UsageBone Fixation
Material TypeTitanium Alloy & Stainless Steel
NameExternal Fixator
Transport PackageBox
Specification50*50*50CM
TrademarkYOUBETTER
OriginChina
Production Capacity500,000 Pieces/Year

External Fixator Overview

The Pinnacle of Modular Fixation Systems: The ultimate solution in bone fixation, setting a new standard in the industry.

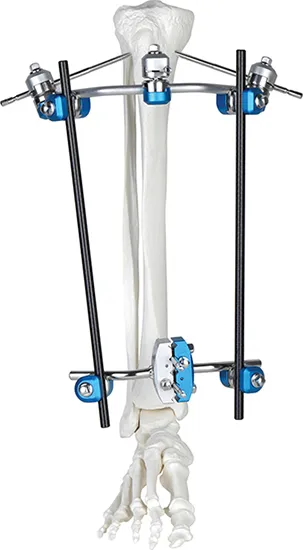

External Fixator
Key Features:
●Advanced groundbreaking technology with intuitive, user-friendly operation.
●Independent arrangement of bone screws for proximal and distal fractures.
●Snap-fit design for streamlined and time-efficient surgical procedures.
●Premium Medical aluminum and carbon fiber for enhanced fracture visualization.
●Unparalleled stability and flexibility for diverse medical needs.
●Compact, space-saving frame for ease of transport and use.

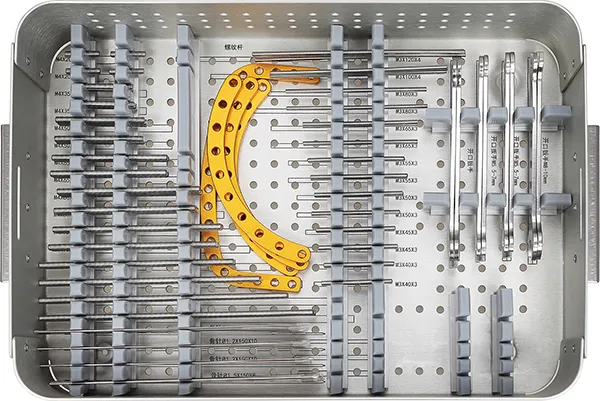

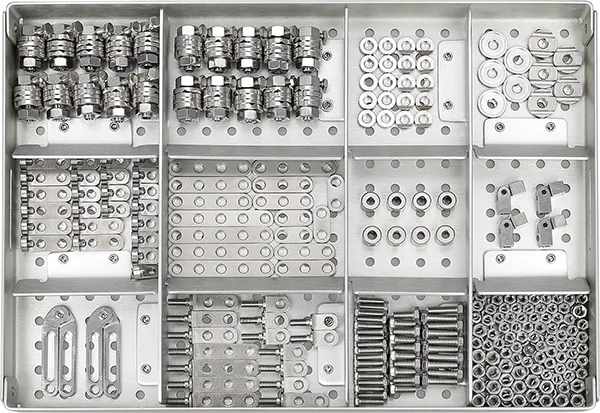

Bone Fixation Component
Bone Fixation Component

Technical Components & Parts List

Component Name Specification / Model Quantity
Independent Couplingφ6*φ14(1.5-2.0) / φ6*φ14(1.5)10 / 10
Needle Clipφ4*φ9 (φ1.0) / φ4*φ9 (φ1.5)5 / 5
Cone Washerφ4*φ9 / φ4*φ1410 / 5
Post With Threaded Postφ4*15(1 Hole)*M4 / φ4*25(2 Hole)*M48 / 8
Connection Plateφ4*20 to φ4*50 (2-5 Holes)4 each
BoltsM3*12 / M4*10 / M4*1417 / 10 / 10
Hex NutM3 / M490 / 90
Bone Screws1.0*150 / 1.2*150 / 1.5*15020 / 20 / 8
Straight Threaded RodM3 (40mm - 120mm) / M4 (20mm - 155mm)Various

Specialized Fixator Variants

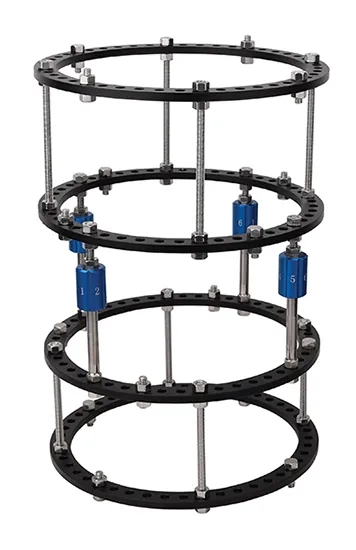

Lower Limbs Fixator

Lower Limbs Lengthening Fixator
Used For Tibia Femur

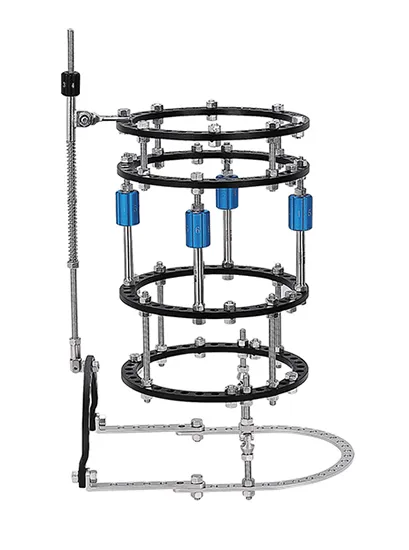

Orthopedic Fixator

Orthopedic External Fixator
Used For Humeral & Tibial

Ring Fixator

Ring Fixator
Full Ring for Tibia Femur

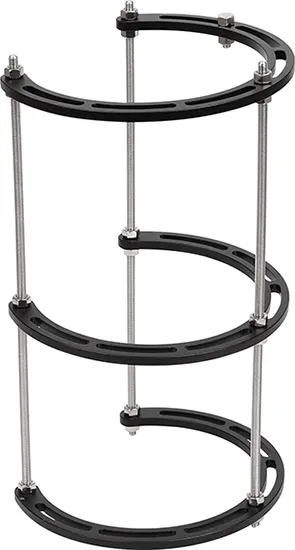

2/3 Ring Fixator

2/3 Ring Fixator
Standard Bone Fixation

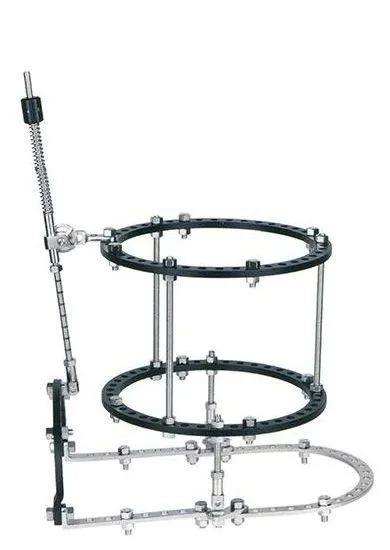

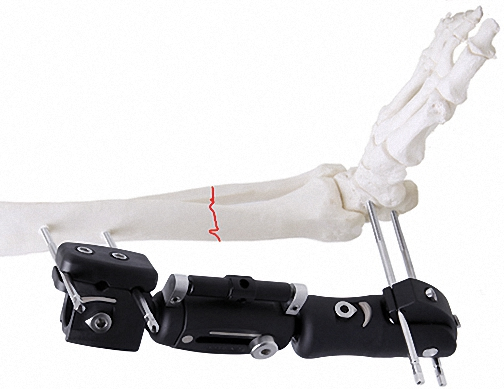

Ankle Joint Fixator

Ankle Joint Fixator
Used For Equinus

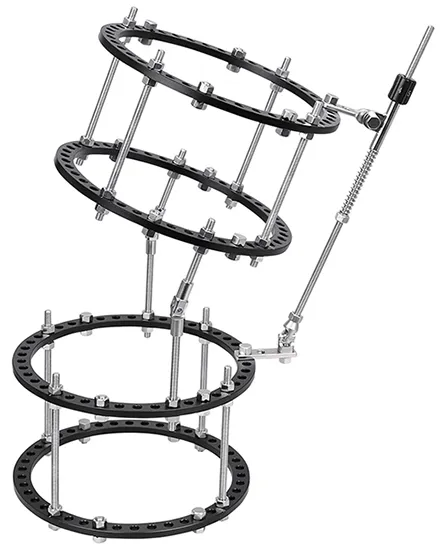

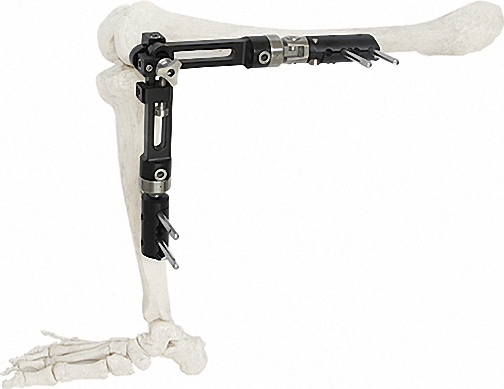

Knee Joint Fixator

Knee Joint Fixator
Specific Joint Application

Frequently Asked Questions

What materials are used in the External Fixator?
The fixators are crafted using high-grade Titanium Alloy, Stainless Steel, and Medical-grade Aluminum and Carbon Fiber for optimal strength and radiolucency.
Are these medical devices certified for international use?
Yes, our external fixators are CE and ISO13485 certified, meeting rigorous international quality and safety standards for medical devices.
Is the External Fixator system reusable?
Yes, the system is designed to be reusable, providing a cost-effective solution for bone fixation procedures without compromising performance.
Can this system be used for complex fractures?
Absolutely. The modular snap-fit design and independent arrangement of bone screws make it ideal for managing complex proximal and distal fractures.
Does the material interfere with X-ray visualization?
No. By utilizing premium medical aluminum and carbon fiber, the fixator enhances fracture visualization during imaging procedures.
What is the production capacity for these units?
We have a robust manufacturing pipeline with a production capacity of 500,000 pieces per year to ensure stable supply for medical facilities.
