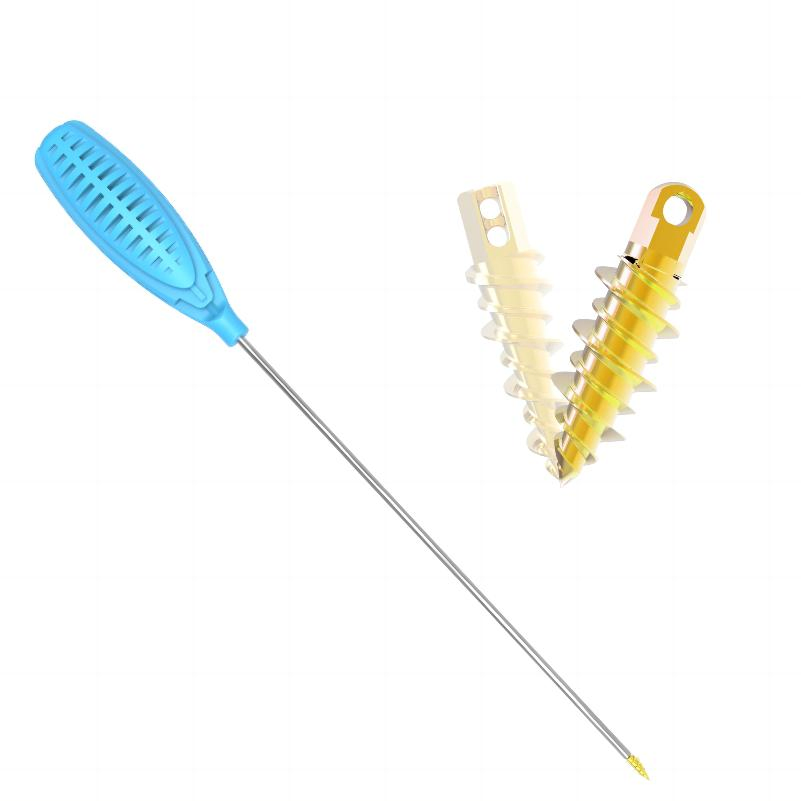

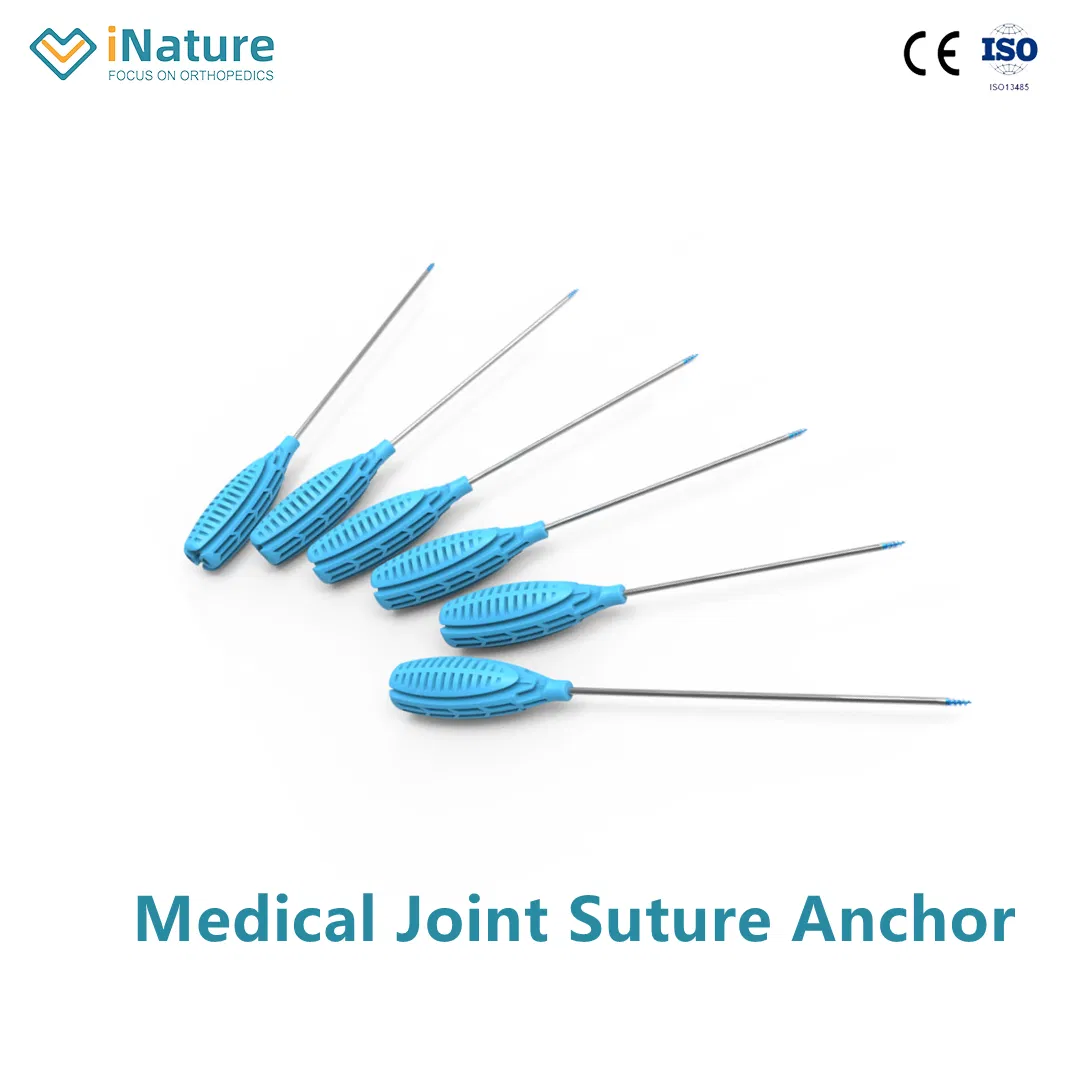

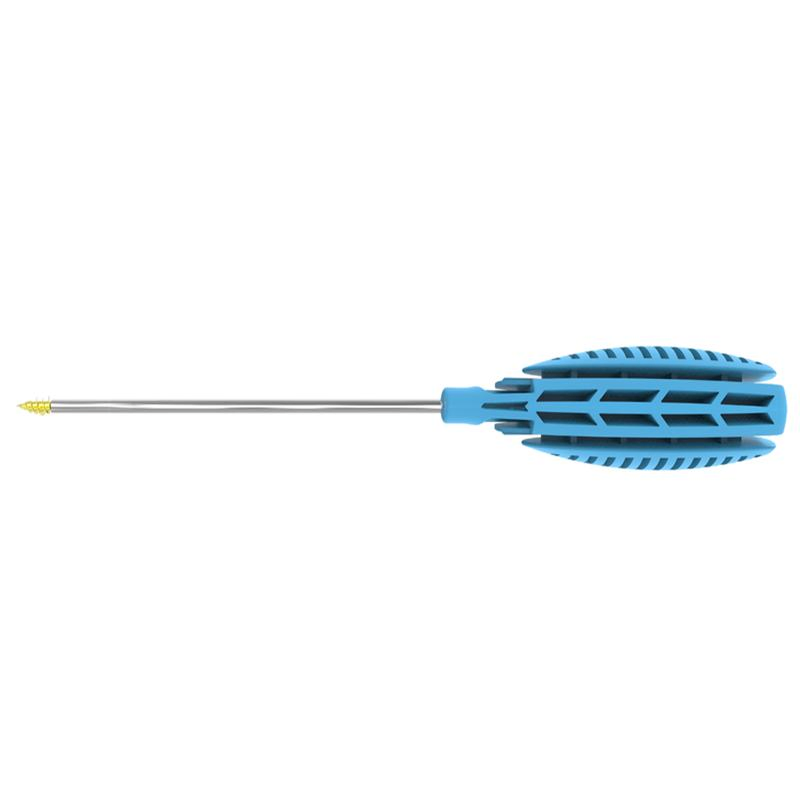

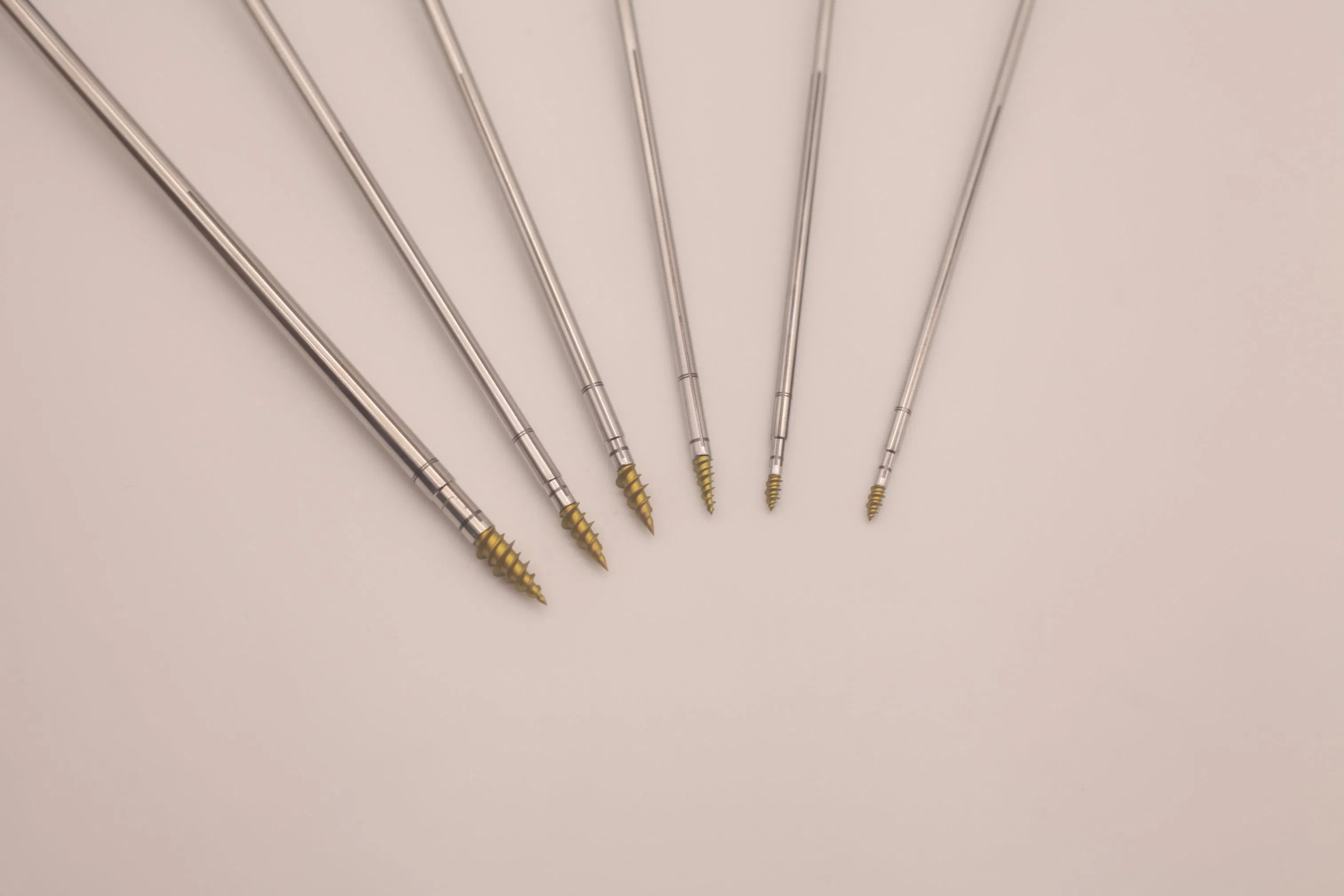

Shoulder Joint Suture Anchor Types Hospital Orthopedic Instrument

Still deciding? Get samples of $ !
Request Sample

Product Description

i

Basic Information

Model NO.
TY-SA
Certification
CE, ISO13485
Instrument Classification
Class II
Shelf Life
Three Years
After-Sale Service
Online Technical Support
Package
Sterile Package
Transport Package
Carton
HS Code
9021100000
Production Capacity
10000 pieces/Year
P

Product Description

Suture anchors are miniature internal fixation implants widely used in orthopedics, sports medicine, and soft tissue repair surgery. Their core function is to reliably fix sutures to the bone, thereby pulling torn tendons, ligaments, glenoid labrum, and other soft tissues back and fixing them to their anatomical insertions, promoting healing.

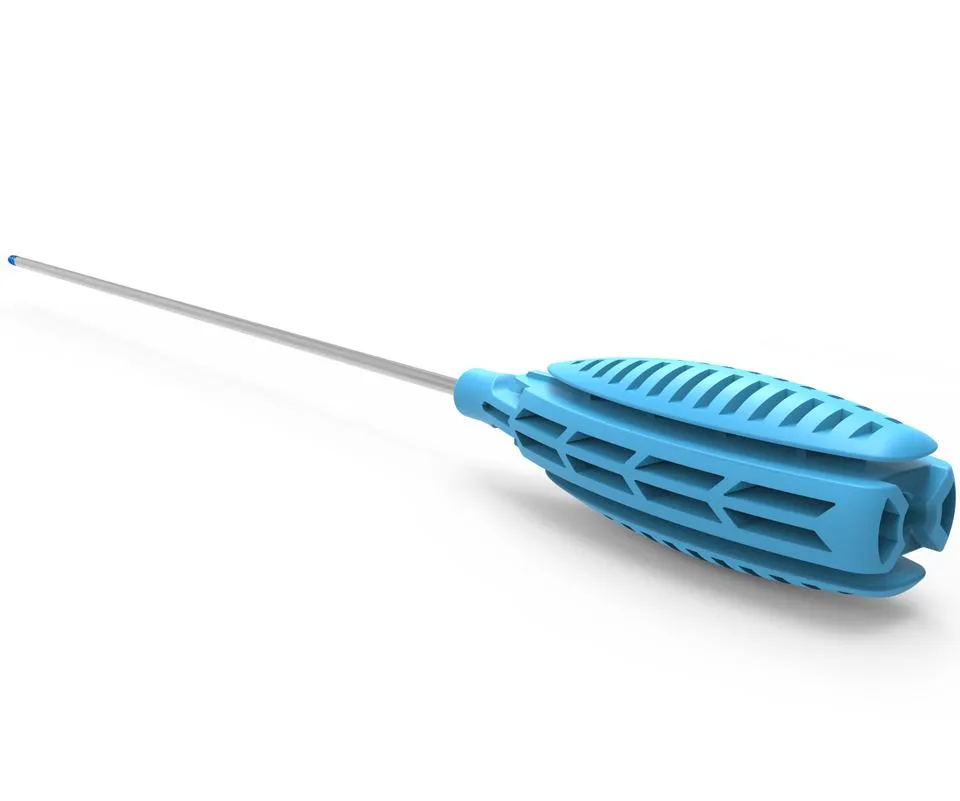

Suture Anchor Overview

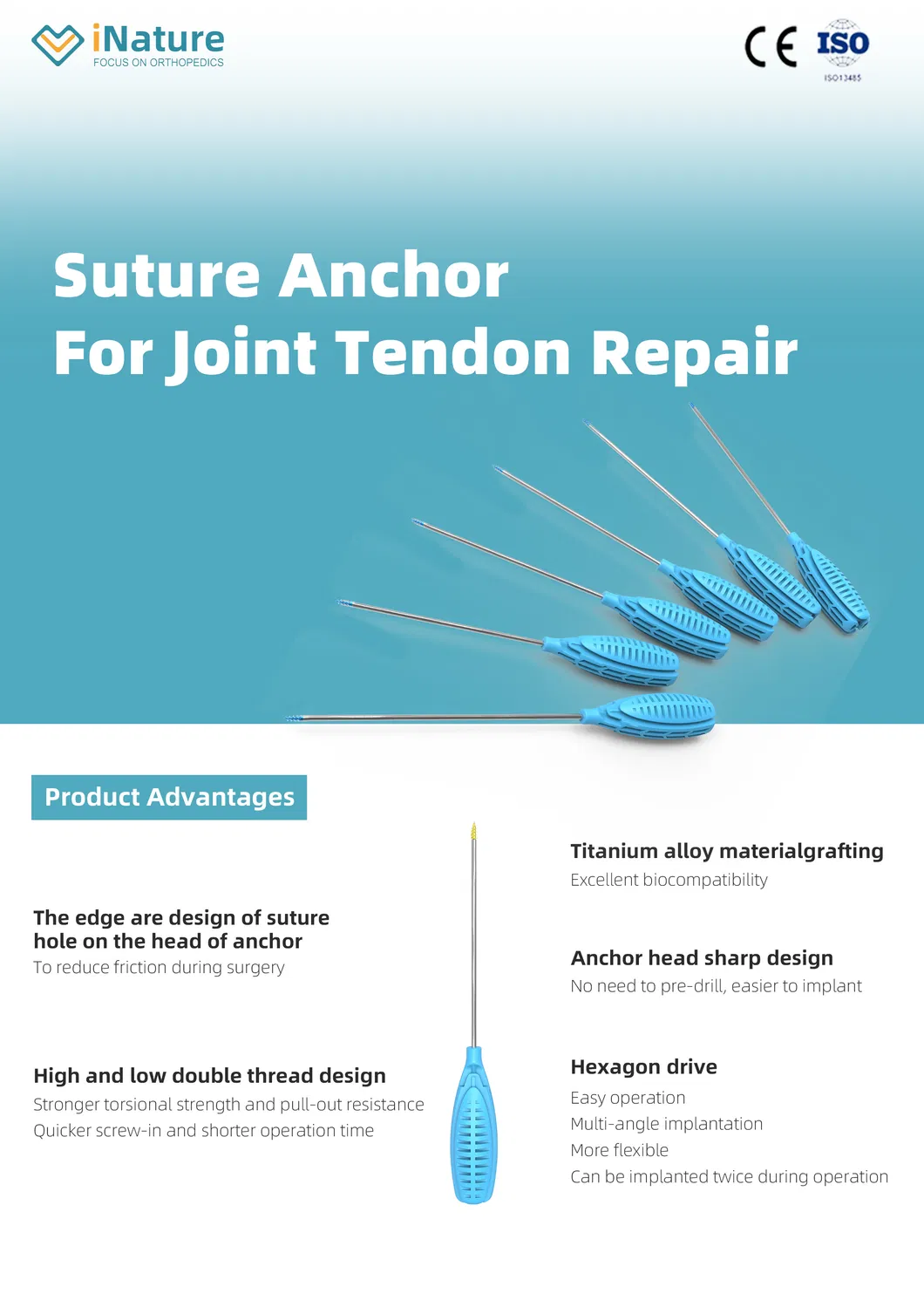

Suture Anchor Detail 1

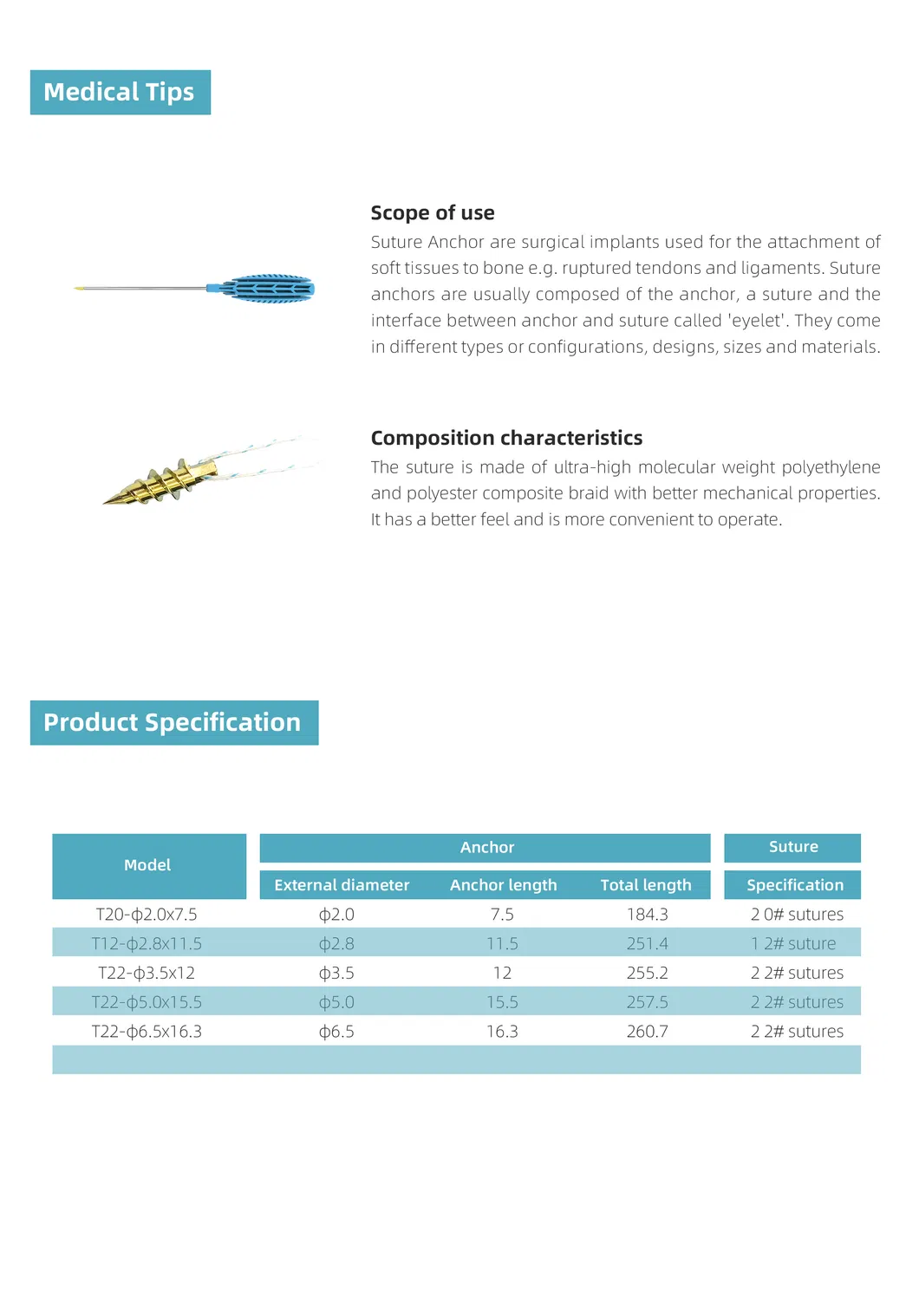

Suture Anchor Detail 2
S

Specifications

Product Name Specification Anchor Outer Diameter (mm) Anchor Length (mm) Total Length (mm) Suture Spec
Suture Anchor For Joint Tendon Repair T12-φ2.0×7.5 φ2.0 7.5 184.3 2 #0
T12-φ2.8×11.5 φ2.8 11.5 251.4 1 #2
T12-φ3.5×12 φ3.5 12 255.2 2 #2
T12-φ5.0×15.5 φ5.0 15.5 257.5 2 #2
T12-φ6.5×16.3 φ6.5 16.3 260.7 2 #2

*All prices are for reference only. Exact price will be based on the latest quotation.

C

Main Clinical Applications

1. Shoulder joint: Rotator cuff repair, labral repair (Bankart injury, SLAP injury), biceps brachii long head tendon fixation.

2. Knee joint: Anterior/posterior cruciate ligament reconstruction, medial patellofemoral ligament reconstruction (MPFL), meniscus repair.

3. Foot and ankle joint: Achilles tendon insertion reconstruction, ankle ligament repair.

4. Elbow joint and others: Tennis elbow (common extensor tendon insertion repair), ligament repair, etc.

Application 1
Application 2
Application 3
Detailed Application Chart
?

Frequently Asked Questions

What is the primary function of a suture anchor?
Suture anchors are used to fix sutures reliably to the bone, allowing for the repair of torn tendons, ligaments, and other soft tissues by pulling them back to their anatomical positions.
What certifications do these suture anchors hold?
The products are Class II medical instruments and hold both CE and ISO13485 certifications.
What is the shelf life and packaging of the product?
The suture anchors have a shelf life of three years and are provided in a sterile package for immediate medical use.
In which joints can these anchors be applied?
They are commonly used in the shoulder (rotator cuff), knee (ligament reconstruction), foot/ankle (Achilles tendon), and elbow joints.
Are there different sizes available for various procedures?
Yes, we offer multiple specifications with outer diameters ranging from 2.0mm to 6.5mm to suit different clinical requirements.
What kind of after-sale support is provided?
We provide comprehensive online technical support to assist medical professionals with product usage and clinical applications.
