Stainless Steel Bone Fixator for Orthopedic Surgery

1 / 5

Stainless Steel Bone Fixator for Orthopedic Surgery

Customization:	Available
Application:	Orthopedic, Neurosurgery, Microsurgery
Material:	Steel

Send Inquiry

Product Description

Basic Specifications

Model NO. External Fixation

Feature Reusable

Certification CE, ISO13485

Color White & Black

Usage Bone Fixation

Material Type Titanium Alloy & Stainless Steel

Name External Fixator

Transport Package Box

Specification 50*50*50CM

Origin China

HS Code 90211000

Capacity 500,000 Pieces/Year

Product Overview

External Fixator -- Modular Fixation External Fixation System

Engineered with cutting-edge technology for unparalleled ease of use.
Allows independent arrangement of bone screws for both proximal and distal fractures.
Snap-fit design for streamlined operation, significantly reducing time and effort.
Utilize medical-grade aluminum carbon fiber to enhance the clarity of fracture vision.
Provides optimal stability and flexibility for superior performance.
Compact frame design for improved efficiency.
Designed to address complex fractures and soft tissue loss.
Ensures simple and highly effective usage.

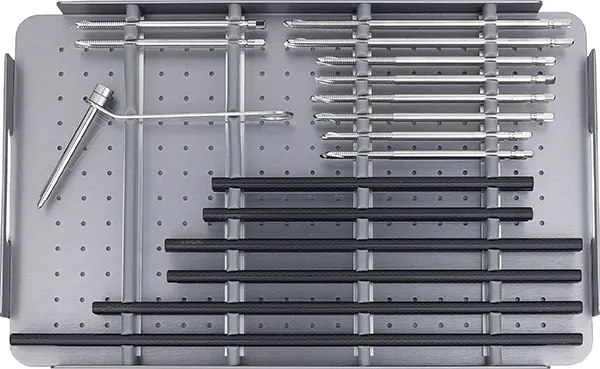

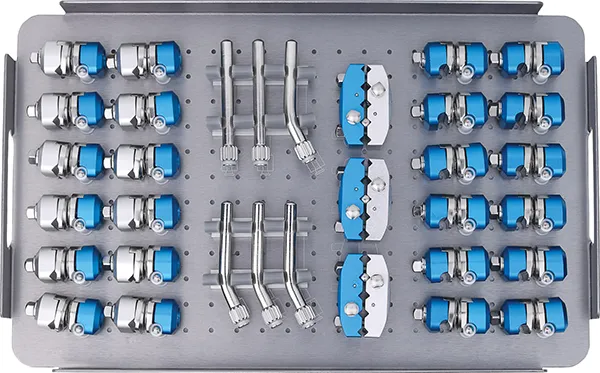

Component Name	Specification	Quantity
Pin To Rod Coupling	φ8/4-5	12
Rod To Rod Coupling	φ8/8	12
5-Hole Pin Clamp	φ8/5	3
Straight Post	φ8	2
30° Post	φ8	4
Self Drilling/Self Tapping Bone Screws	φ5*180 / 150 / 130 / 120	20 Total
Guides	φ4/5	1
Carbon Fibre Rod	φ8*350 / 300 / 250 / 200	12 Total
Semi-Circular Curved Connecting Rod	φ8*160 / 200	2

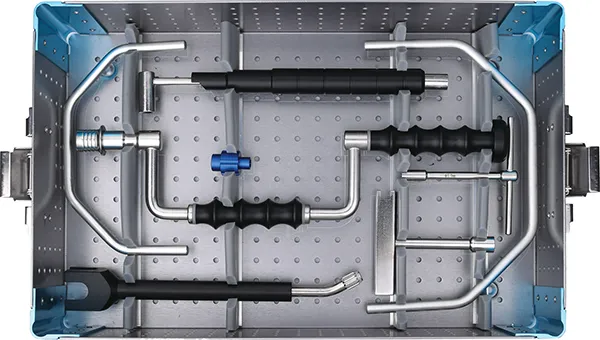

Instruments (Wrenches, Drills, Drivers)	Various	Sets

Clinical Applications

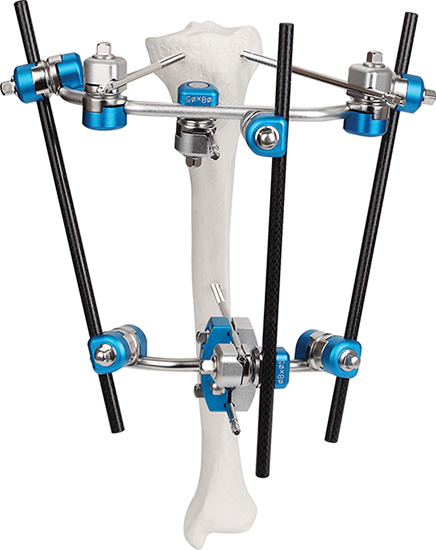

Proximal Tibia External Fixator

Features: Rod to Rod Coupling (4), Pin To Rod Coupling (3), 5-Hole Pin Clamp (1), 30° Post (2), Carbon Fibre Rods, and 5 Bone Screws.

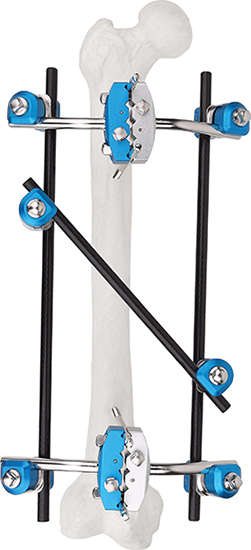

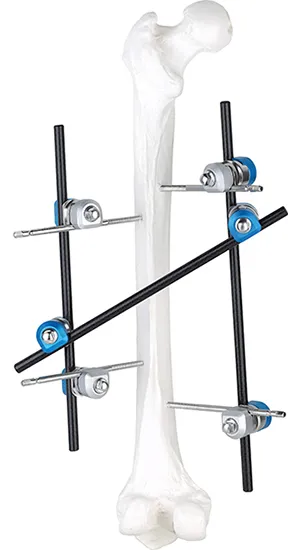

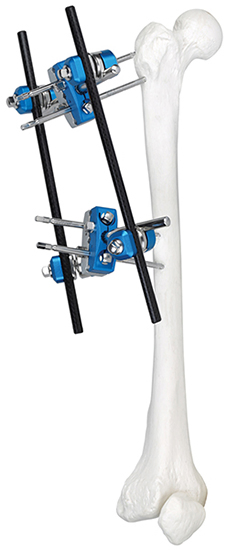

Femoral Shaft Fixator

Features: Rod To Rod Coupling (2), Pin To Rod Coupling (4), Carbon Fibre Rods 8x200mm/250mm, and 4 Bone Screws.

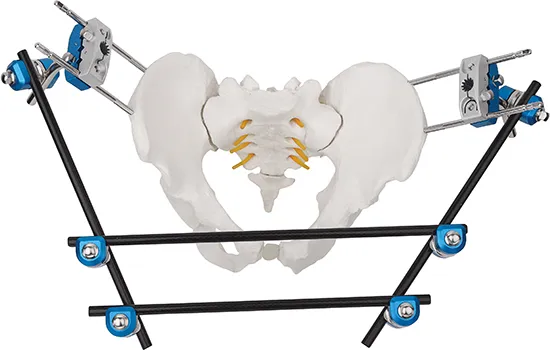

Pelvic Fixator

Features: Rod To Rod Coupling (6), 5-Hole Pin Clamp (2), 30° Post (2), Carbon Fibre Rods, and 4 Bone Screws.

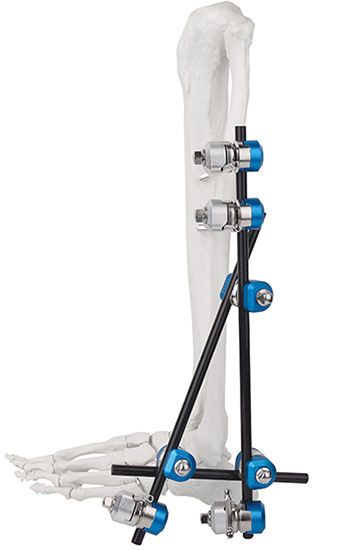

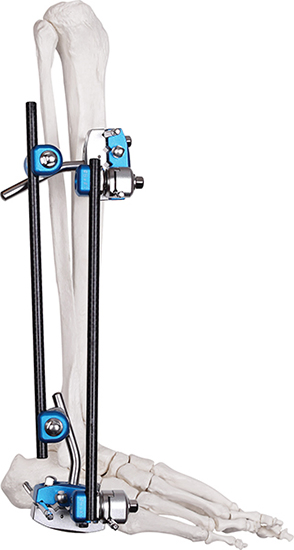

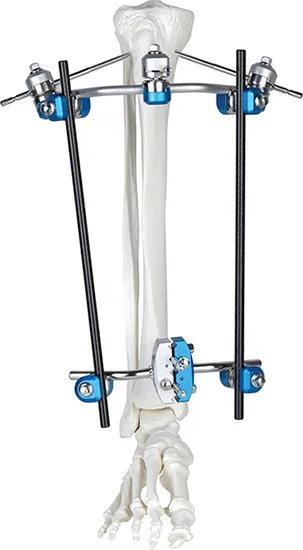

Ankle Joint Fixator

Features: Rod To Rod Coupling (3), Pin To Rod Coupling (4), Carbon Fibre Rods, and specific 4mm/5mm Bone Screws.

Frequently Asked Questions

What materials are used in the External Fixator system? The system utilizes high-quality Titanium Alloy, Stainless Steel, and medical-grade Carbon Fiber to ensure strength and clarity under X-ray.

Are these medical fixators reusable? Yes, the components are designed to be reusable following proper sterilization and maintenance protocols.

Does the system support complex fractures? Absolutely. The modular design and independent screw arrangement allow surgeons to address complex fractures and soft tissue loss with high stability.

How does the snap-fit design benefit surgery? The snap-fit design streamlines the assembly process, significantly reducing the operative time and effort for the surgical team.

What certifications does the product hold? The External Fixation system is fully certified with CE and ISO13485 standards, ensuring compliance with international medical safety regulations.

What body parts can this modular system be used for? The system is versatile and includes specialized configurations for the Tibia, Femur, Pelvis, and Ankle Joint.
