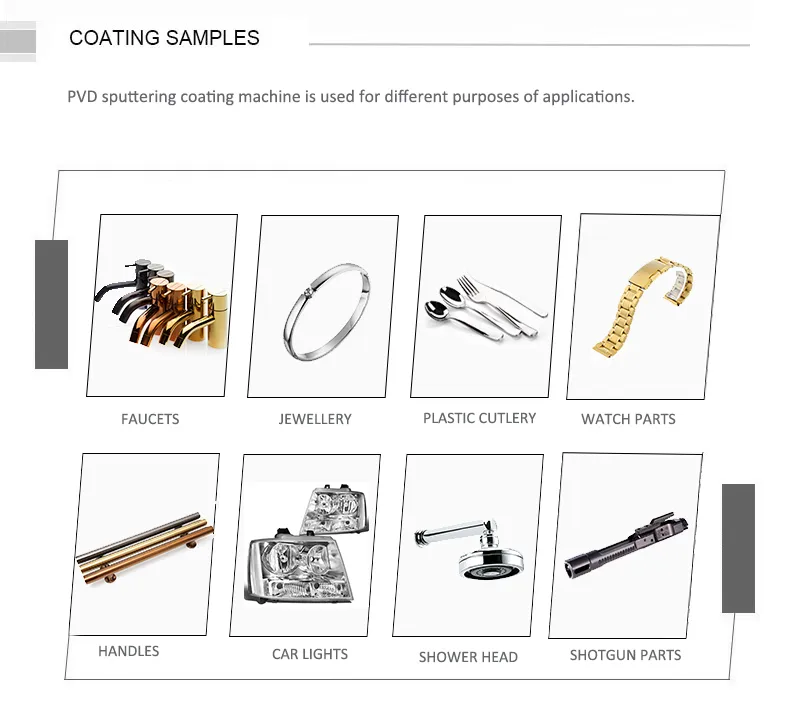

The equipment is a reasonable structure, coating evenly into good-quality, pumping speed, the cycle of short, high efficiency and easy operation, low energy consumption and performance advantages of stability. Widely used in automotive, audio and various small appliances, computers, clocks and watches, toys, cell phones, reflective Cup, cosmetics, toys and other industries.

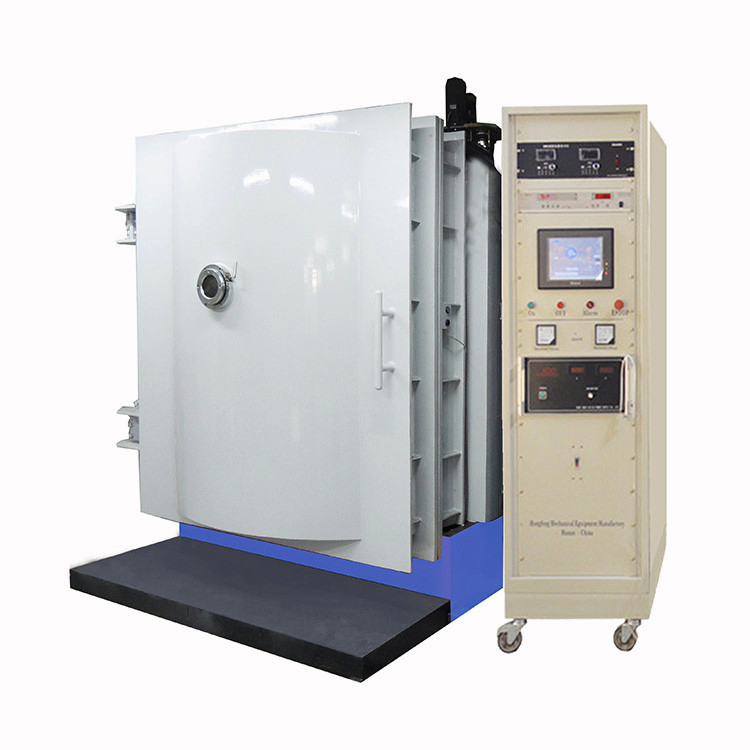

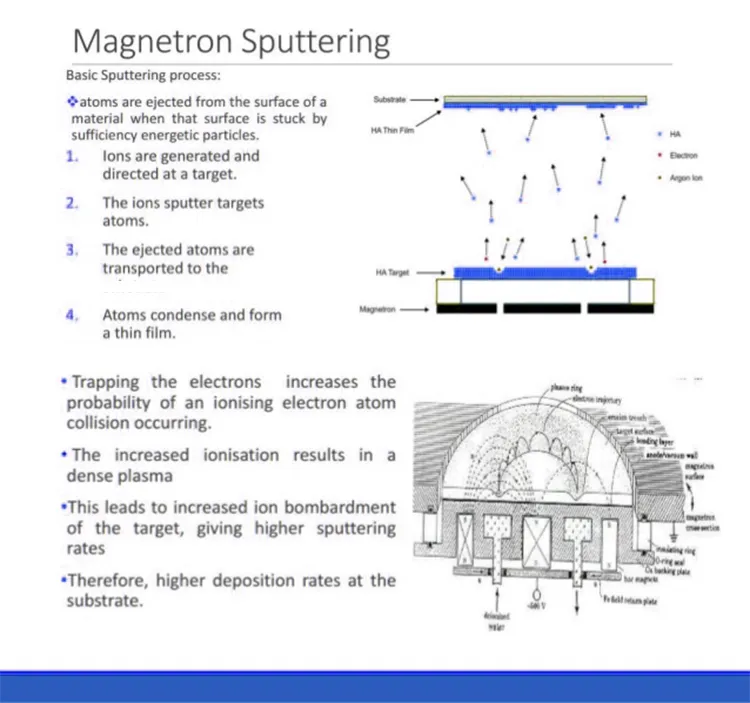

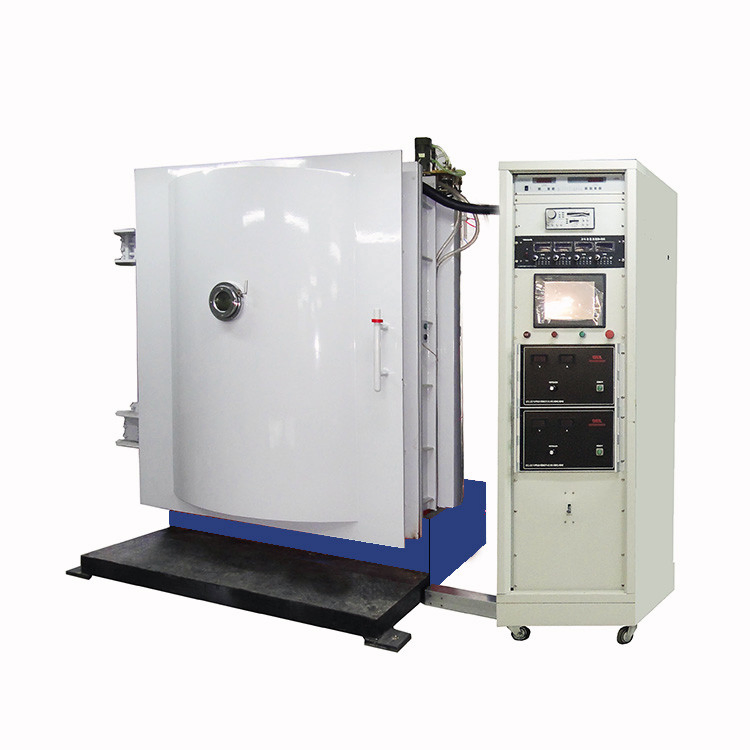

DC magnetron sputtering coating machine is usually used for direct sputtering coating for different substrates, such as plastic, glass, metal, and ceramic. Magnetic fields define the behavior and properties of the ion-charged particles used for sputtering, enhancing productivity, applicability, and reproducibility.

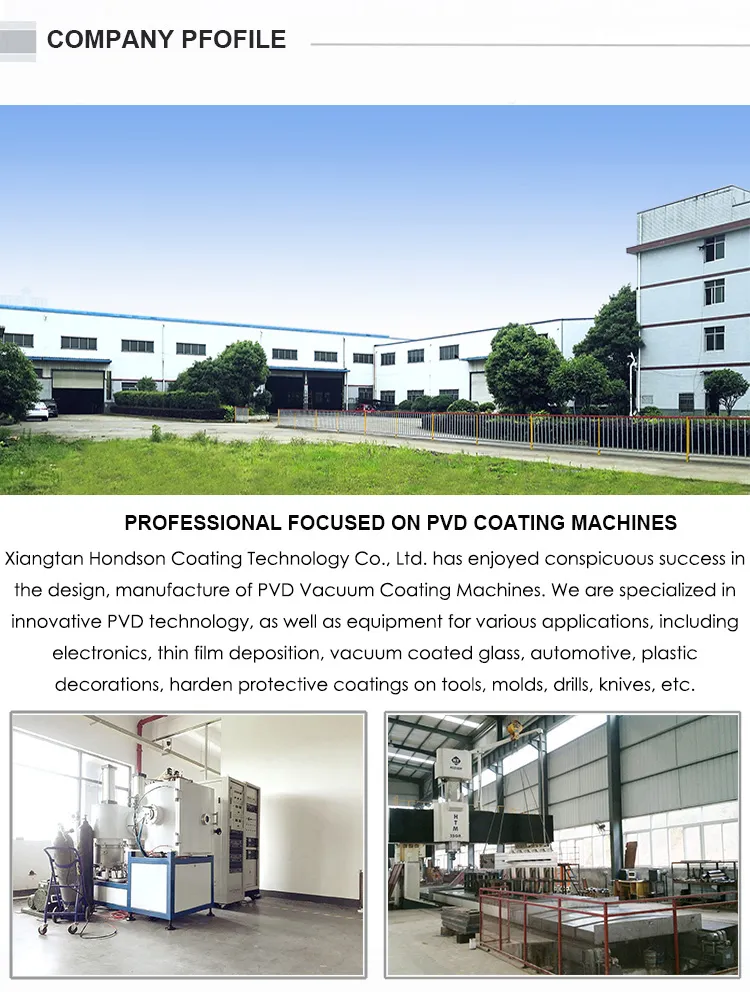

We have dedicated more than 10 years to manufacturing and designing magnetrons that can be rectangular, cylindrical, circular, and of various sizes. They have developed a plethora of targets that can be directly cooled or bonded, and can be manufactured in such a way that can fit most magnetron sizes.
| Model Number | SP-1000 | SP-1200 | SP-1400 | SP-1800 |
|---|---|---|---|---|
| Chamber Dimension (D*H) | 1000*1100 | 1200*1400 | 1400*1600 | 1800*2000 |
| Chamber Material | Carbon steel, SUS304 or SUS316L | |||
| Pumping Time | Atmosphere to 5.0*10-2Pa < 8 minutes | |||
| Ultimate Vacuum | 5.0*10-4 Pa | |||
| Working Mode | Automatic or Manual mode, by PLC touch screen | |||
| Total Power | 40-100kW | 70-1000kW | ||

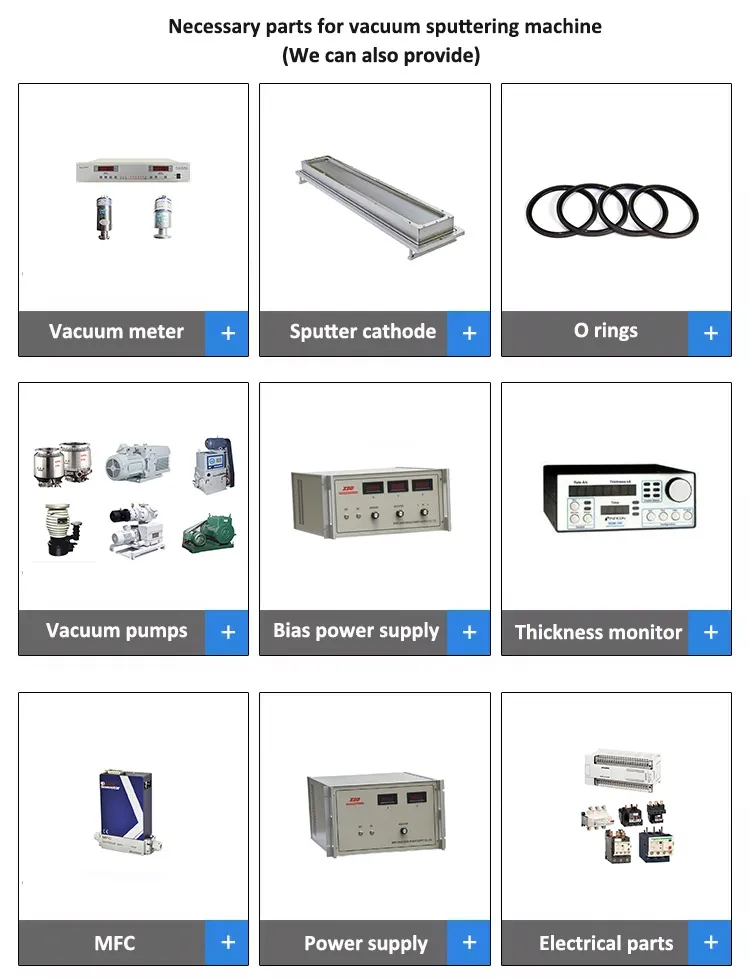

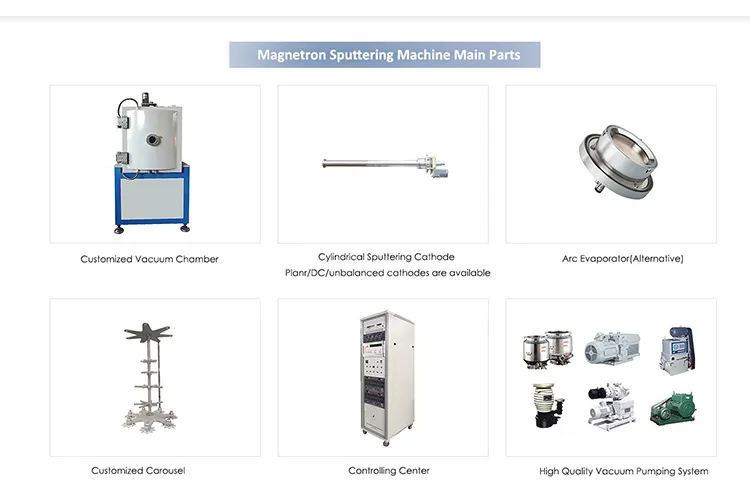

Necessary parts available for daily production:
