Medical Drill Tools Equipment Orthopedic Low-Speed Endoprosthesis Total Arthroplasty Replacement

Customization:	Available
Type:	Power Drill
Kind:	Orthopedics

Send Inquiry

Product Description

Medical Drill Tools Equipment

Orthopedic low-speed endoprosthesis total Arthroplasty replacement. Broadly applied in traumatic surgery, joint surgery, orthopedic surgery, and neurosurgery operations. Features an imported motor for low noise, high speed, and long service life.

Basic Information

Model NO.

ND-3511

Certification

CE, ISO13485

Group

Adult

Operating Principle

Total Hip Replacement

Product Name

Surgical Power Drill

MOQ

1 Set

Advantage

Professional Manufacture

Warranty

2 Years

Motor

Brushless Motor

Classification

Class II

Dimension

500X240X300(mm)

Package

Aluminum Box

Voltage

100V-240V

Sterilizing Time

About 20 Mins

Torque

750g/Cm

Technical Data

Working Voltage	14.4V	Output Power	130W
Unit rise in Temp	≤ 25ºC	Input Voltage	AC 220V, 50Hz
Output Voltage	14.4V, 900mA	Charger Power	30VA
Charging time	3 hours	Speed	300r/min
Non-loaded noise	63dB(A)	Radial run-out	0.5mm
Torque	33000gcm	Sterilization	Up to 135ºC

Product Technical Merits

Designed specifically for joint operations.
Low speed with great torque, compatible with various acetabulum burnishing and medullary cavity expanding tools.
Main unit is fully autoclavable at high temperatures and pressures (up to 135ºC).
Carbonless motor provides increased power and easy power selection during operation.
Scientific balance technology reduces vibration and enhances handpiece control for comfortable use.
High concentricity ensures precision during HIP operation polishing.

Product Display & Configuration

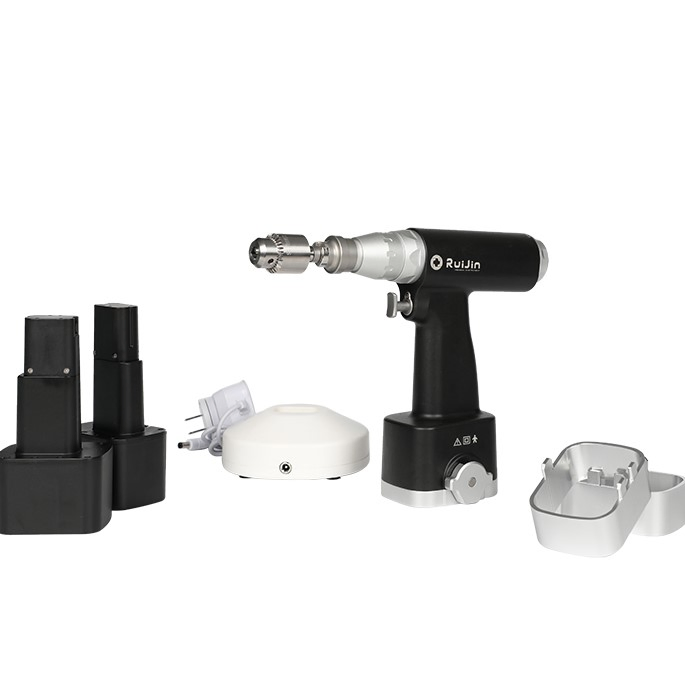

Standard Configuration Includes: Handpiece, Charger, Two Batteries, Sterilizing Channel, Drill Chuck, and Aluminum Alloy Box.

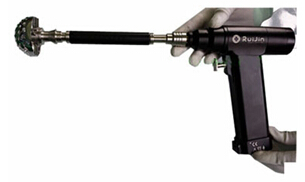

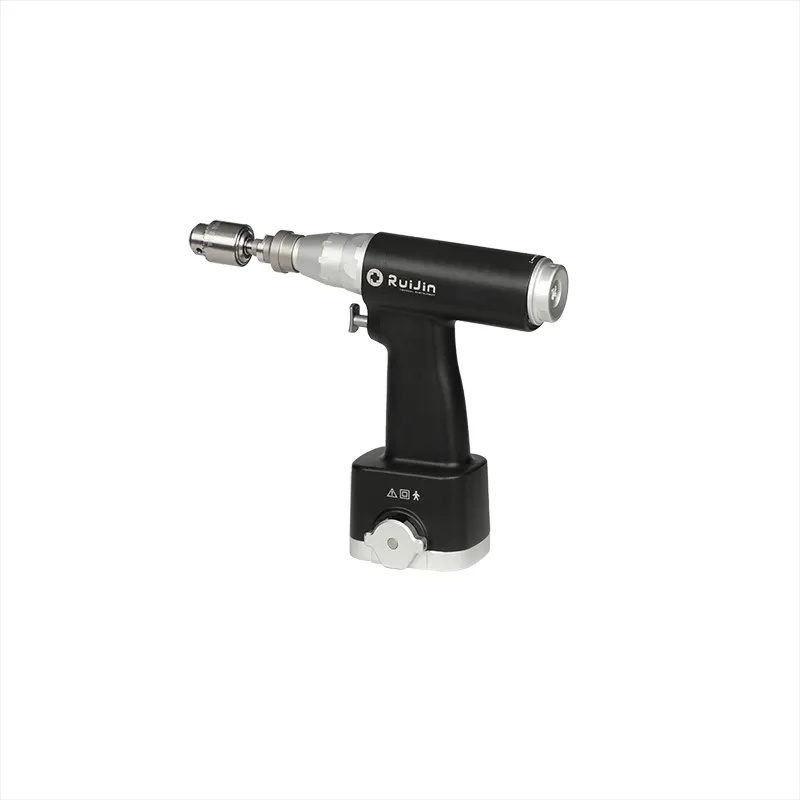

Hip joint drill with various adaptors

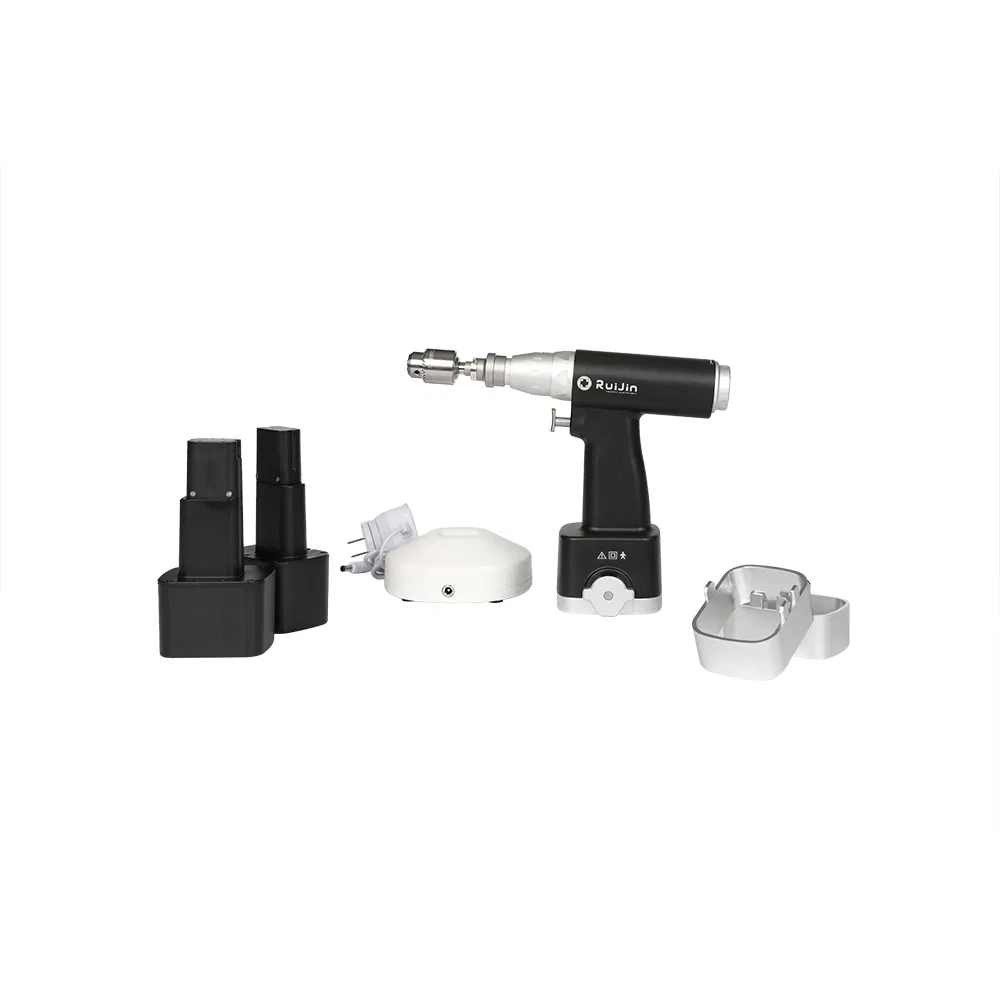

Includes 2pcs powerful batteries

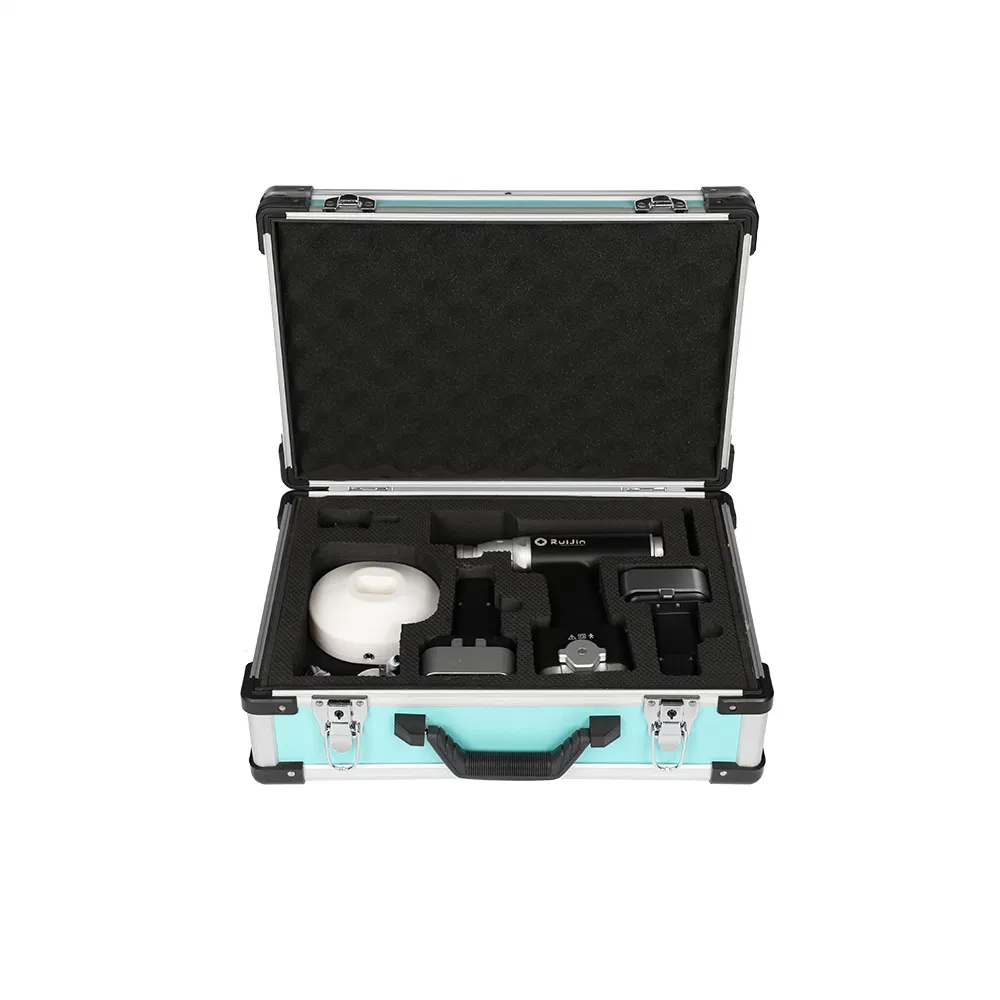

Protective aluminum carrying case

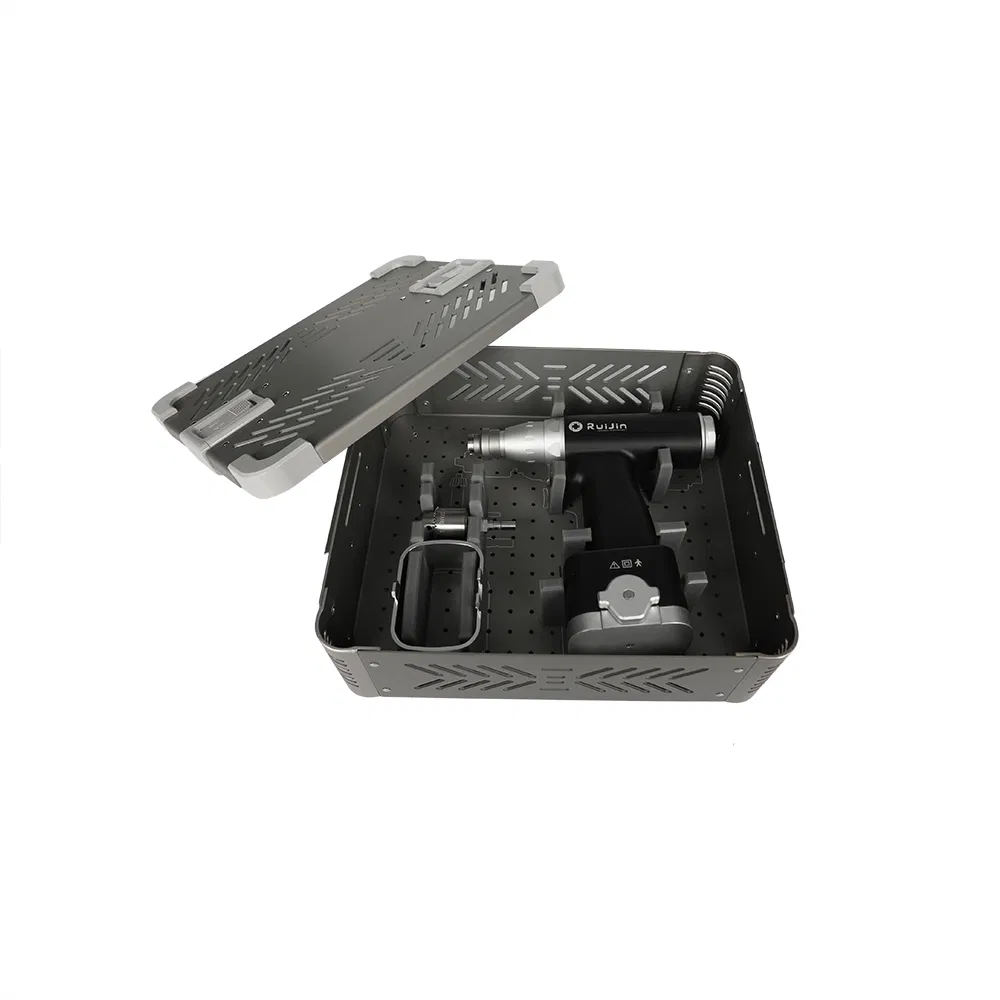

Specialized sterilization tray

Certificates & Quality Assurance

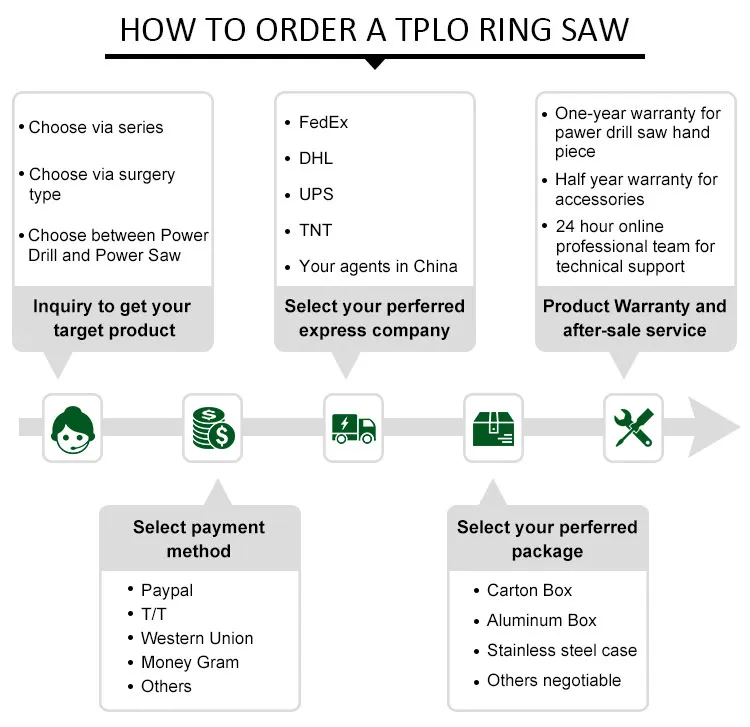

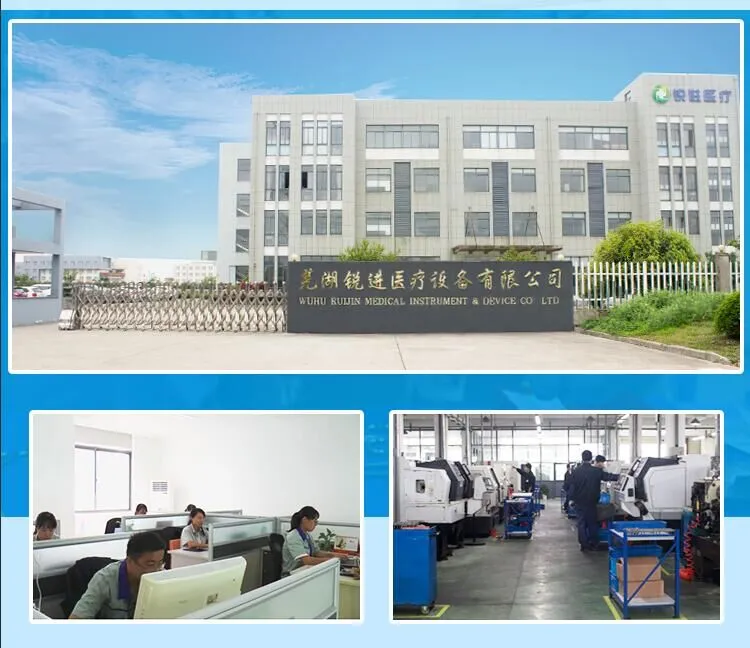

Ordering & Production Process

Attention & Notes

1. Only professionals should disassemble the device.

2. Compatible with electricity sources 110V/60Hz - 220V/50Hz.

3. Remove the battery when not in use to prevent automatic discharge and extend battery life.

4. The battery cannot be disinfected; ensure the battery compartment is dry after sterilization.

5. Sterilization temperature must not exceed 135 degrees Celsius to protect the motor.

Frequently Asked Questions (FAQ)

Q1: What are the primary surgical applications for this power drill? A: This medical drill is extensively used in orthopedic surgeries, specifically for total hip replacements, traumatic surgery, joint surgery, and neurosurgery.

Q2: Can the entire unit be sterilized in an autoclave? A: Yes, the main unit is designed to be autoclavable at high temperatures and pressures up to 135ºC. However, please note that the battery should not be disinfected.

Q3: What kind of motor does the surgical drill use? A: The drill features an imported brushless motor, which ensures low noise, high stability, and a significantly longer service life compared to standard motors.

Q4: How many batteries are included in the standard set? A: Each standard configuration includes two high-capacity batteries to ensure continuous power and efficiency during surgical procedures.

Q5: Is the speed of the drill adjustable? A: Yes, the device features variable speed control, allowing surgeons to easily select the appropriate power and speed required for different stages of the operation.

Q6: What is the warranty period for this medical equipment? A: The product comes with a professional manufacturer's warranty of 2 years for the machine.
